OUR CABLE BUS DESIGN

DESIGNED FOR YOU

Learn about our cable bus design, assembly, and materials. The combination results in the best cable bus you’ll ever use.

It’s engineered and designed to be assembled effortlessly and efficiently.

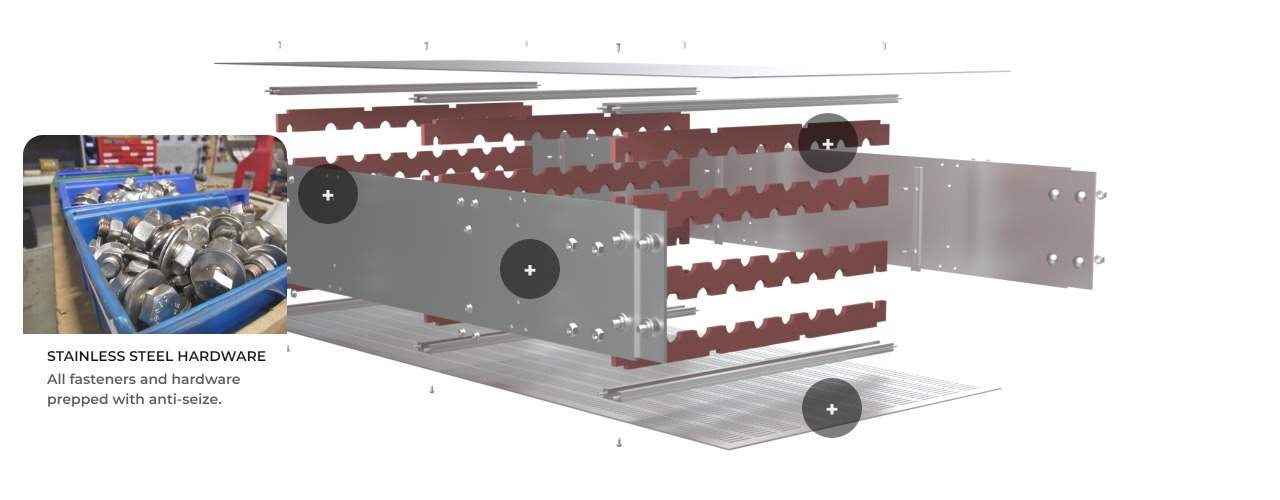

All fasteners and hardware prepped with anti-seize
STAINLESS STEEL HARDWARE
Aluminum 6061-T6 side rails are used for maximum strength.
1/4" SIDE RAIL
Cable Bus Systems
All covers are ventilated to allow for a free-air rated system.
SLOTTED VENTILATION
Close-up of a cable bus cover ventilation holes

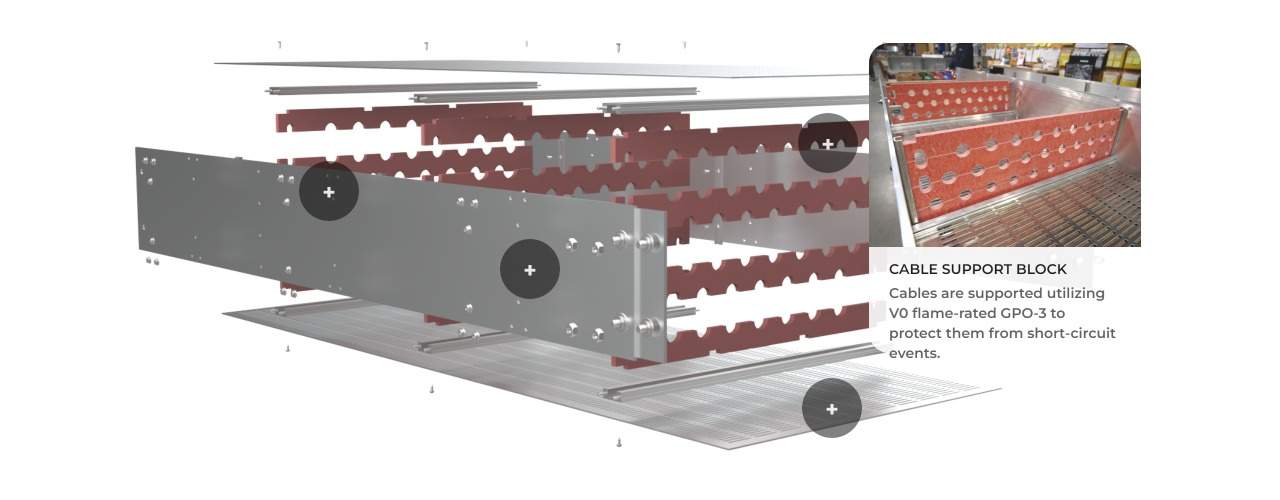

Cables are supported utilizing V0 flame-rated GPO-3 to protect them from short-circuit events.
CABLE SUPPORT BLOCK

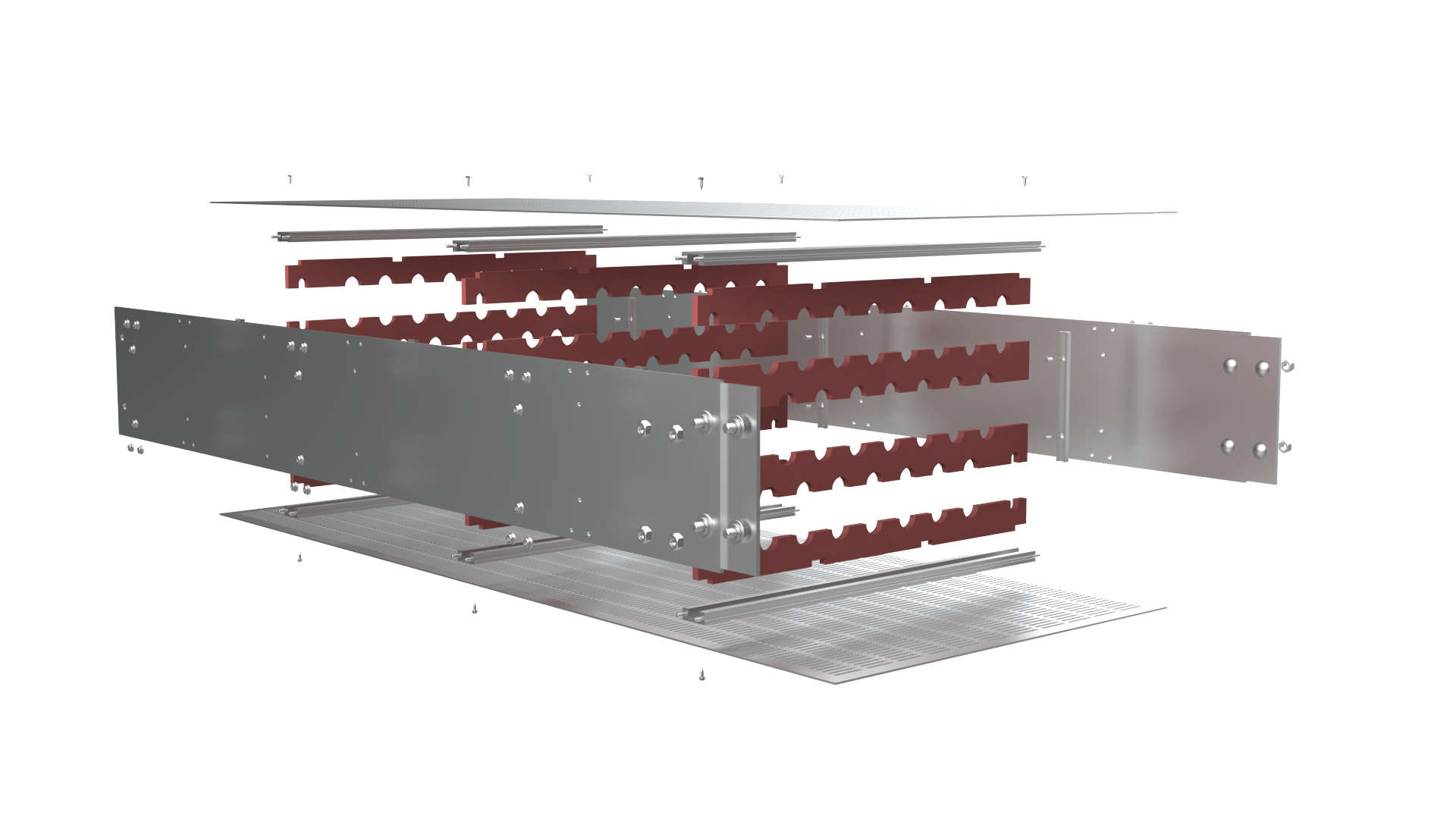

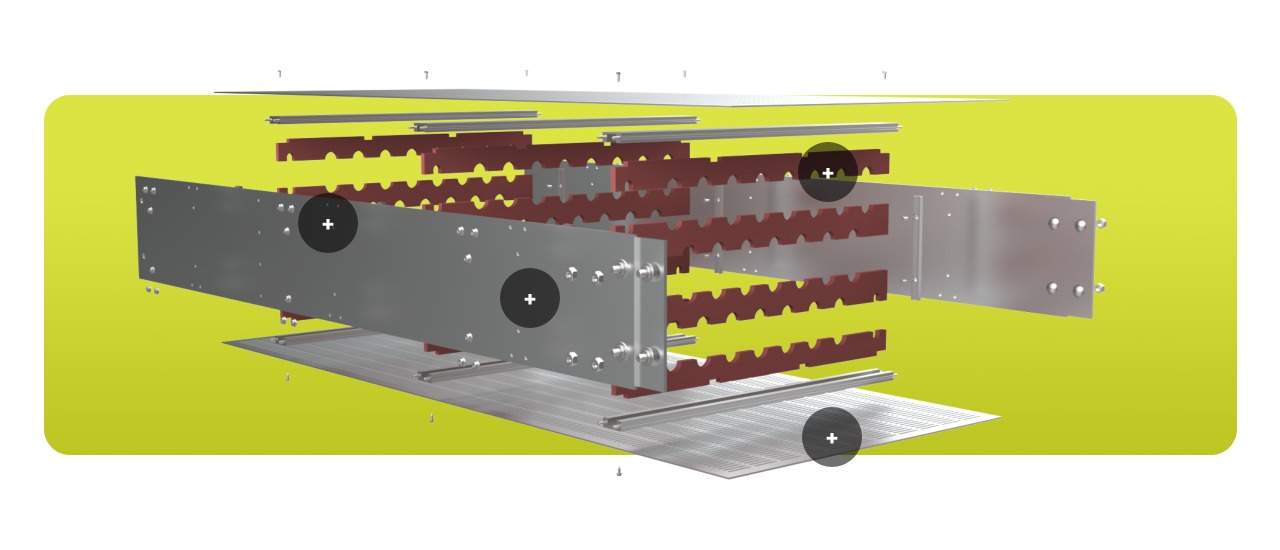

WHAT MAKES UP THE POWER BUS WAY CABLE BUS DESIGN?

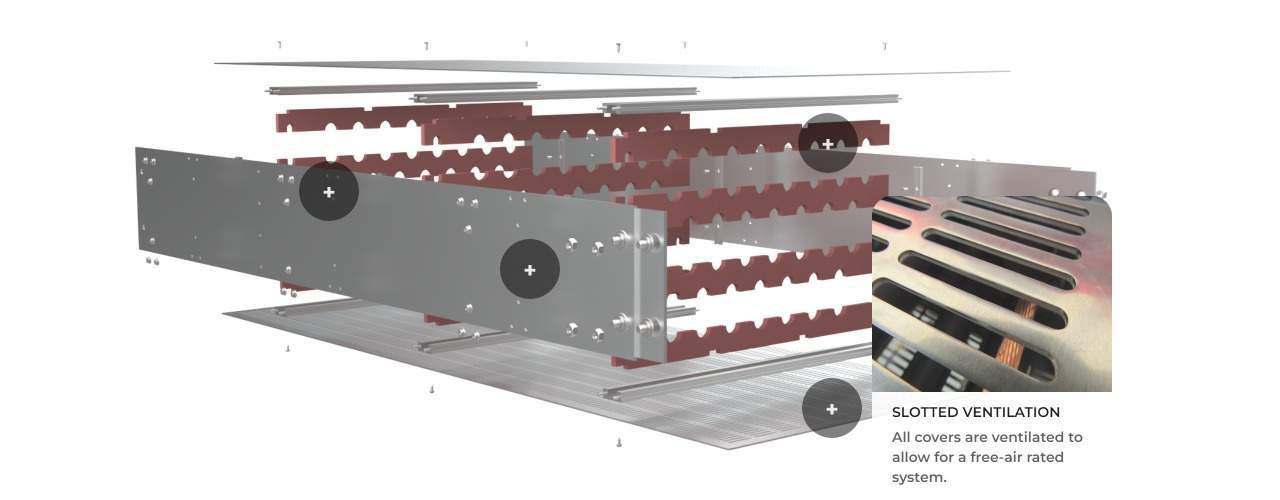

Cable Bus Design - Ventilated Cover

SLOTTED VENTILATION

All covers are well ventilated to allow for a free-air rated system.

Cable Bus Design - Aluminum Rail

1/4″ SIDE RAILS

Aluminum 6061-T6 side rails are used for maximum strength.

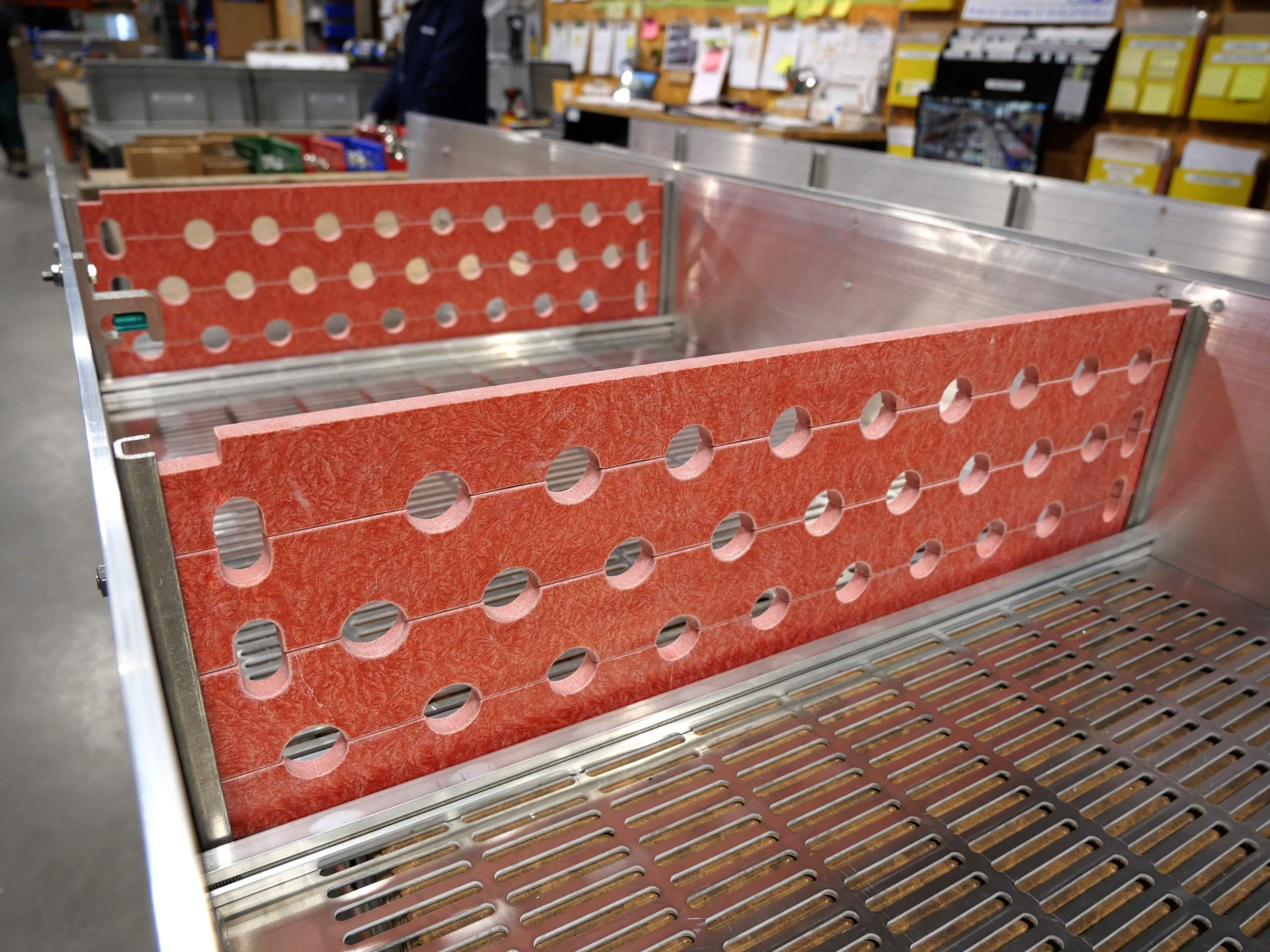

Cable Bus Design - GPO

CABLE SUPPORT BLOCKS

Cables are supported utilizing V0 flame-rated GPO-3 to protect them from short-circuit events.

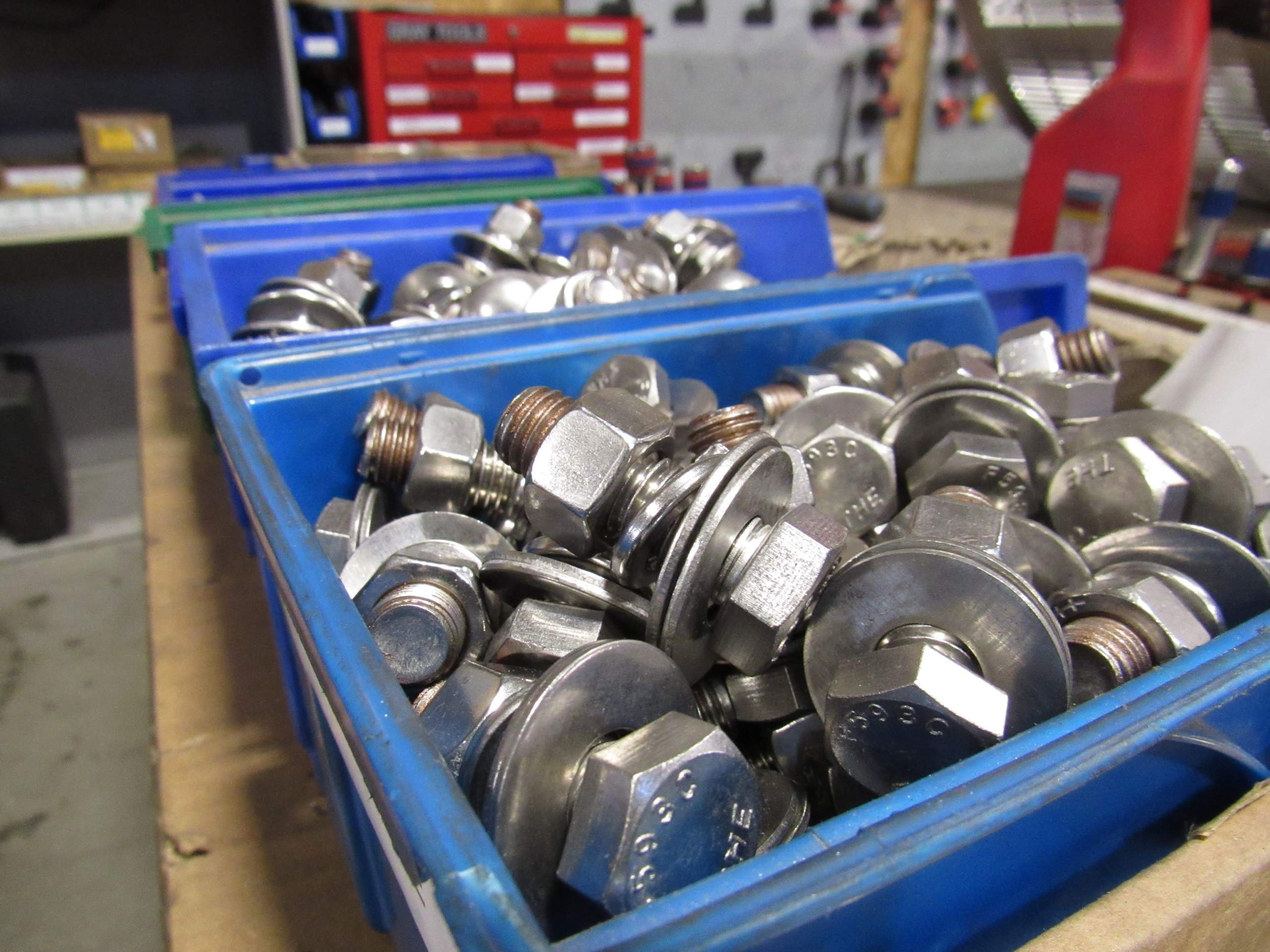

Cable Bus Design - Fasteners and Hardware

HARDWARE

All stainless steel fasteners and hardware prepped with anti-seize.
