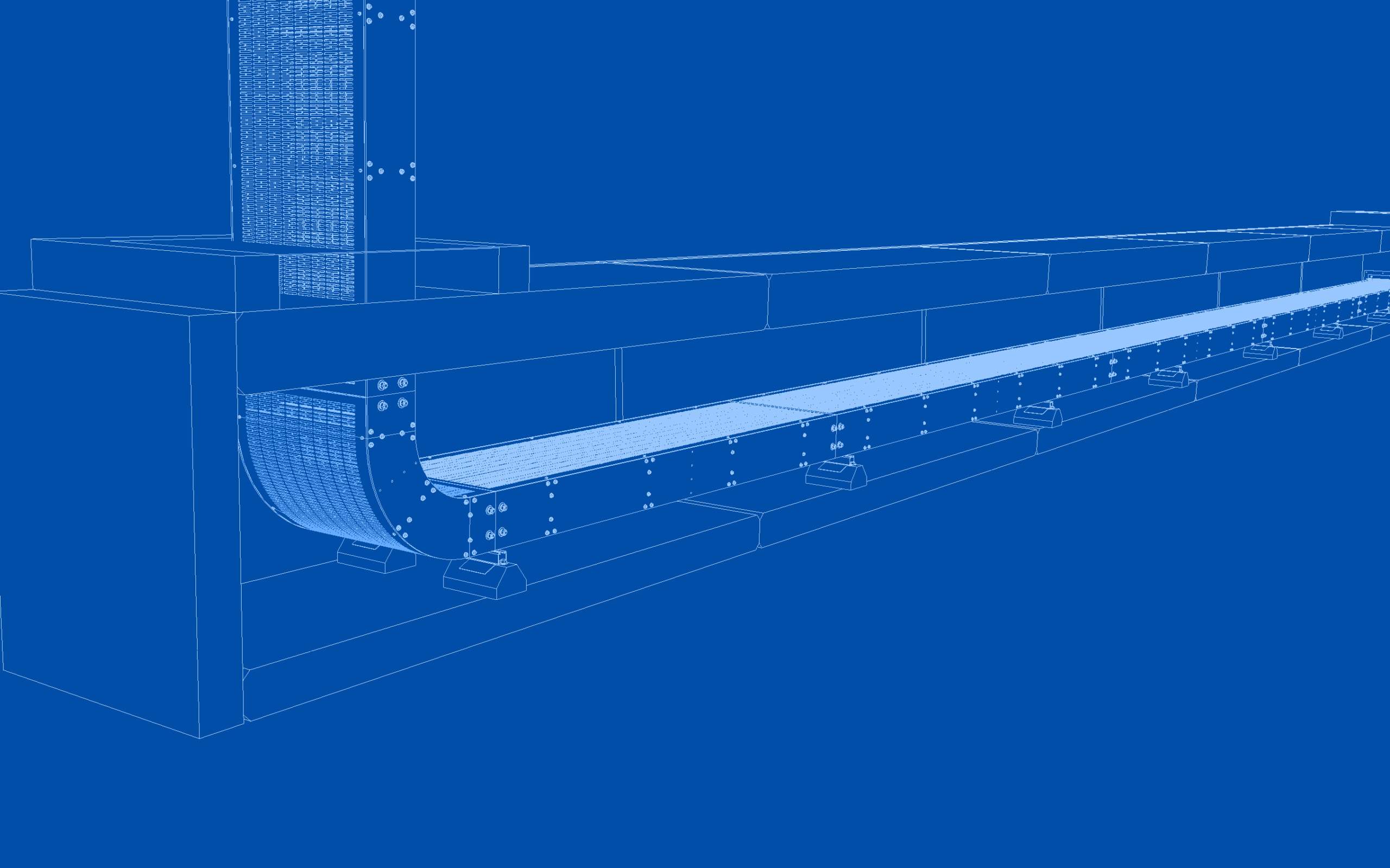

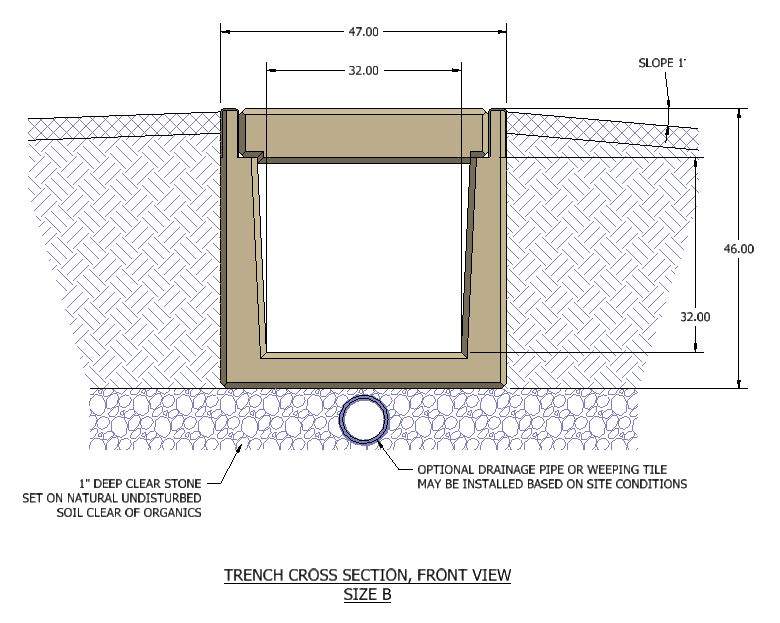

Blueprint of underground trench

OUR UNDERGROUND SYSTEM

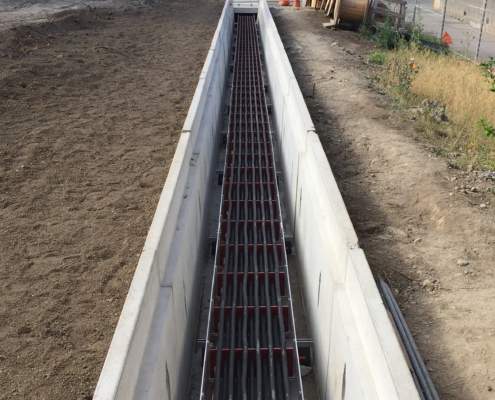

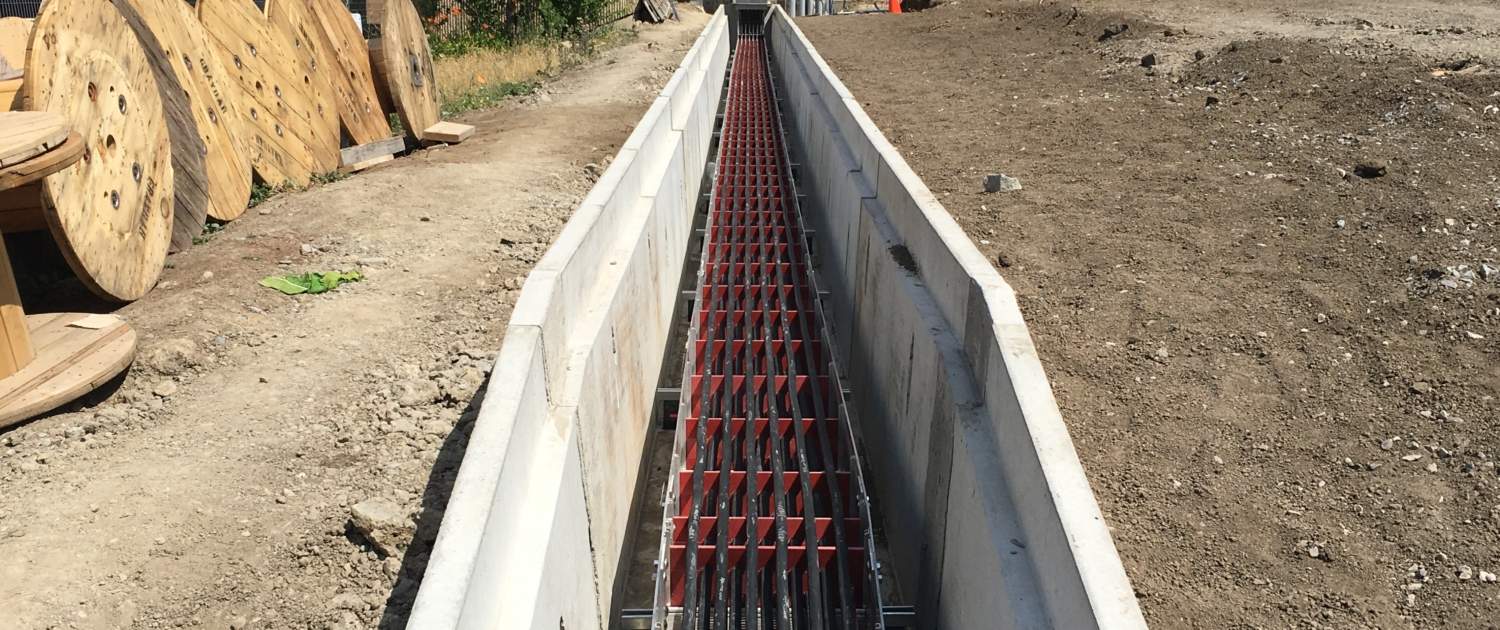

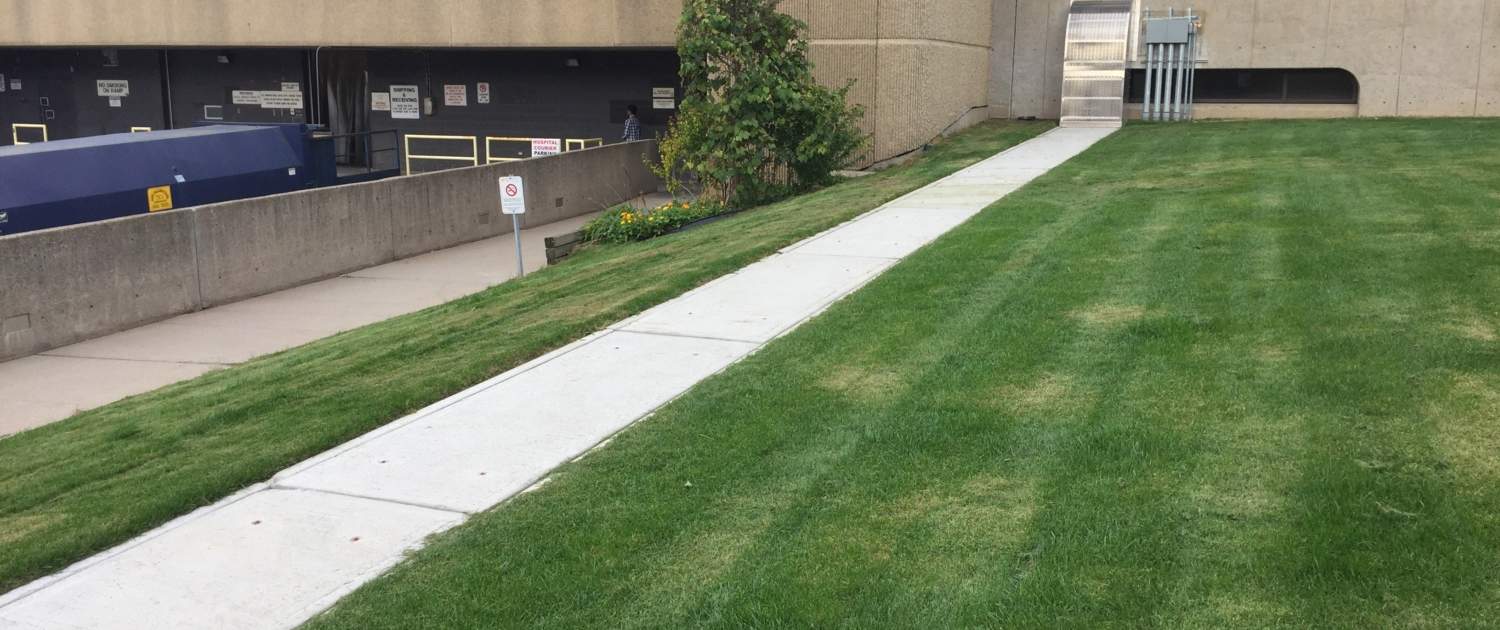

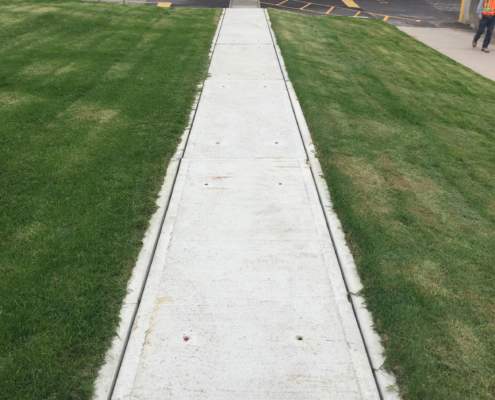

BeforeAfter

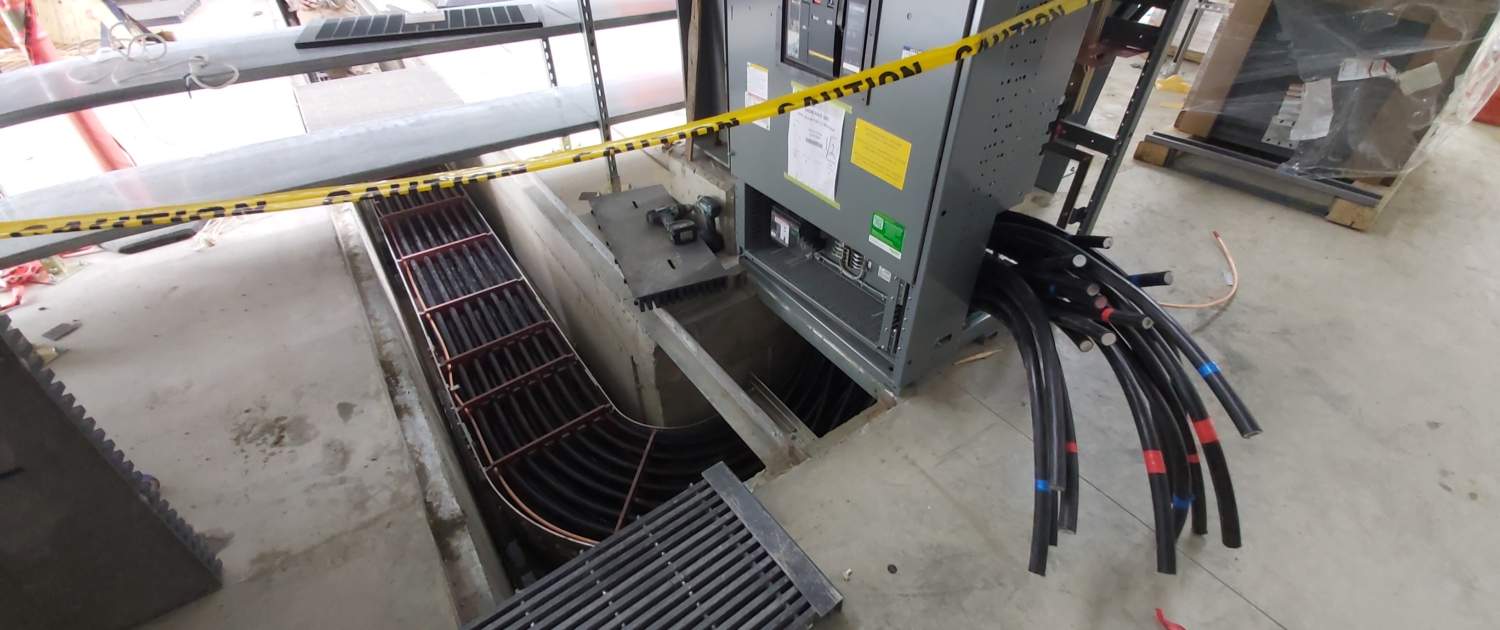

OUT OF SIGHT

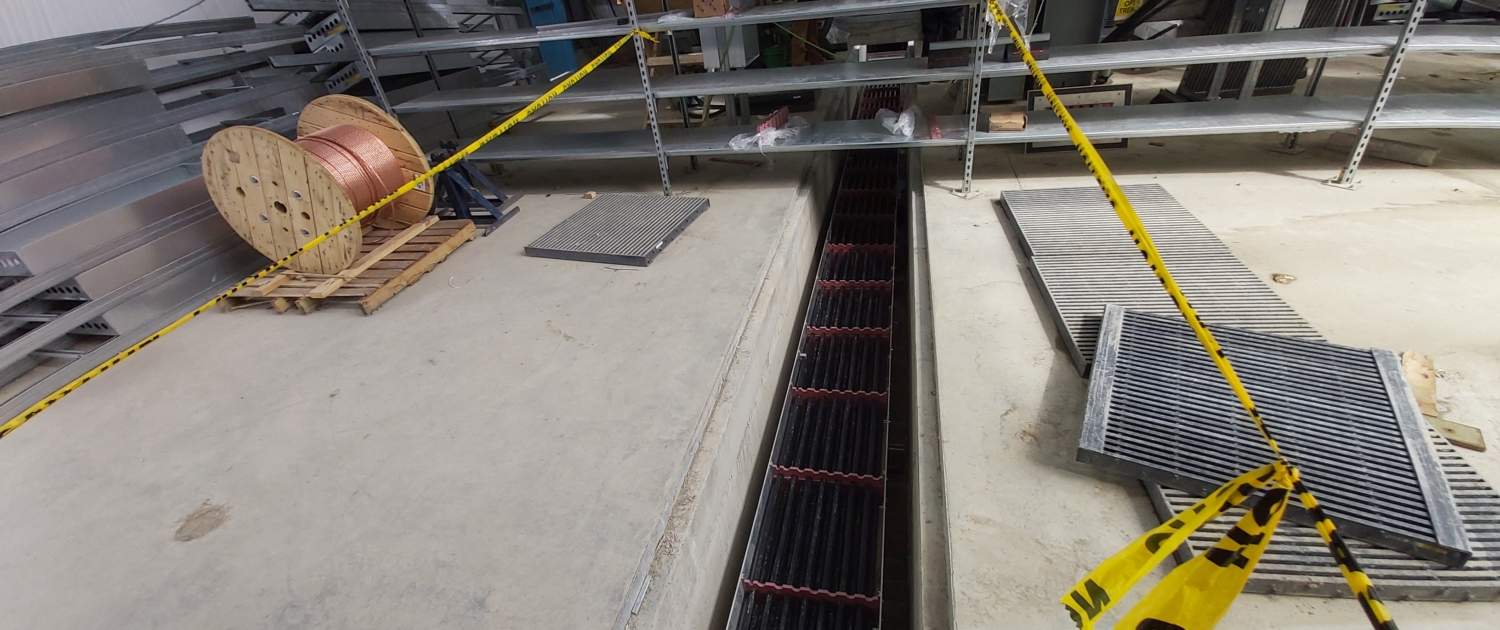

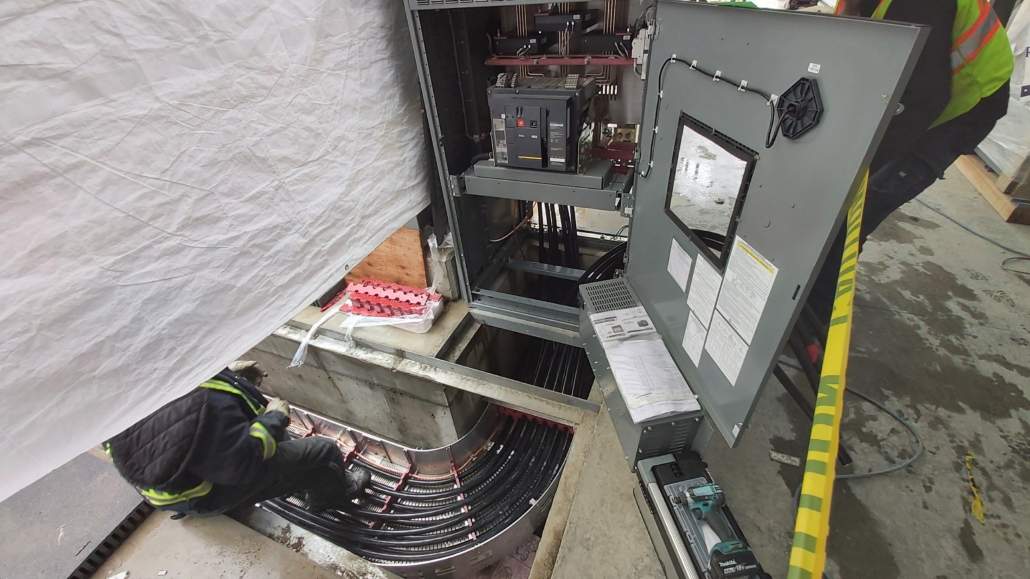

Power Bus Way cable bus can be installed underground, taking advantage of free-air ampacities.

We design and provide all details on the underground cable system, including trenching, ventilation, drainage and backfill requirements. We will take into account weight requirements for the trench design.

Key System Benefits

  • Trench provides increased protection from inclement weather
  • Underground cable bus systems allow feeders to be out of sight
  • Offers flexibility and adaptability in routing and layout
  • Facilitates future expansions, reconfigurations, or equipment rearrangements
  • Placement helps to prevent the spread of fire in the event of a fault
  • Noise reduction as the earth provides natural sound insulation

CLEARANCE

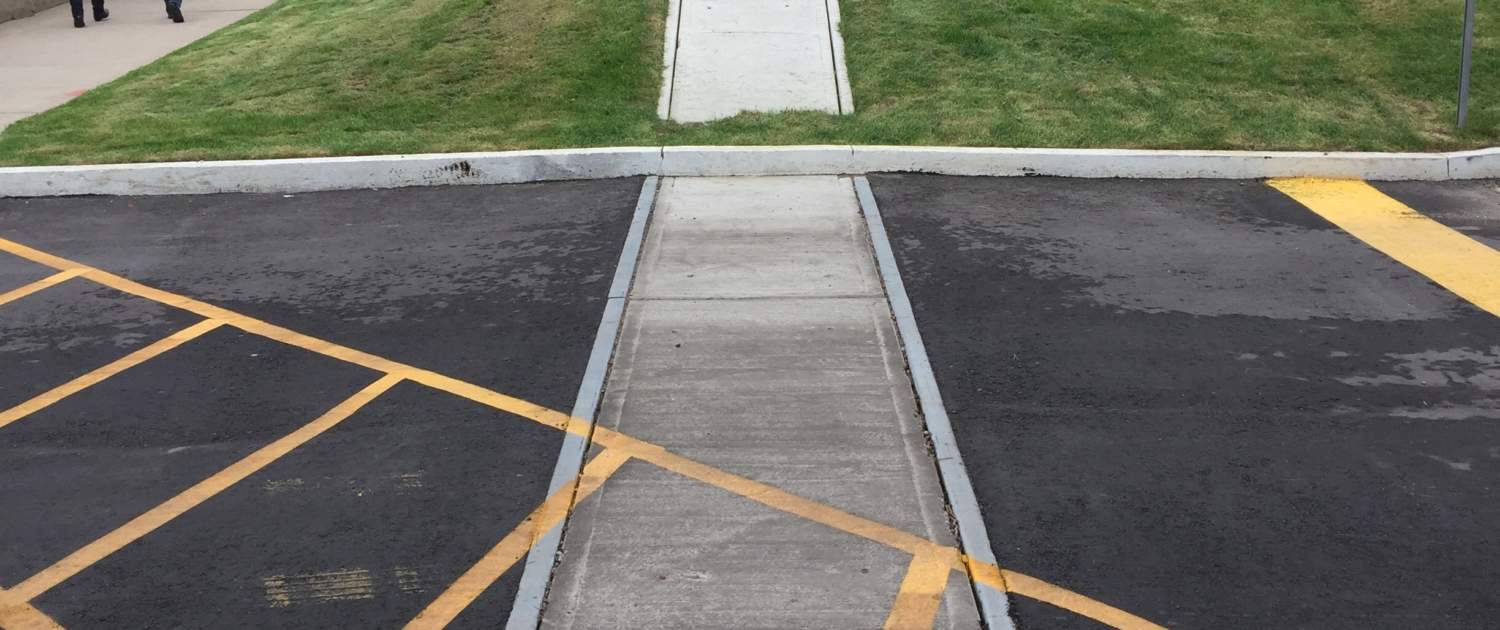

Cable bus runs through safely in areas with vehicular and pedestrian traffic.

COST & SIZE

Duct bank is too expensive or too large, underground cable bus can save you money and space.

LOAD RATING

All pre-cast concrete trenches offered meet the Ontario Highway designation H20 rating (individual wheel loading of 22,300lbs).

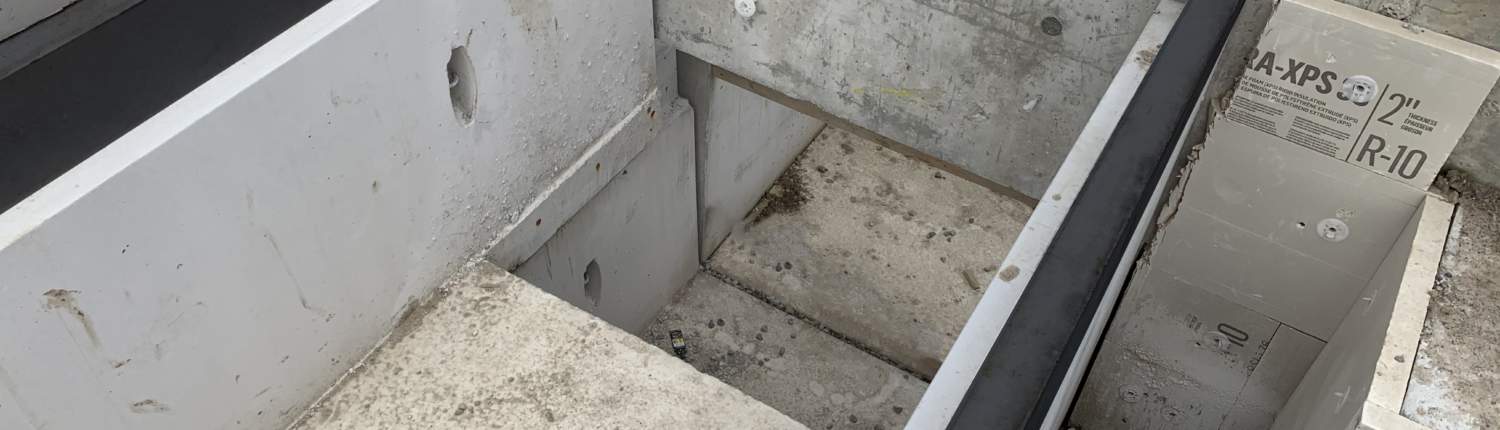

GALVANIZED STEEL CAPS
Providing robust protection and weight-bearing support, ideal for road crossings. Ensure durability and safety with our reliable solution for added trench security.

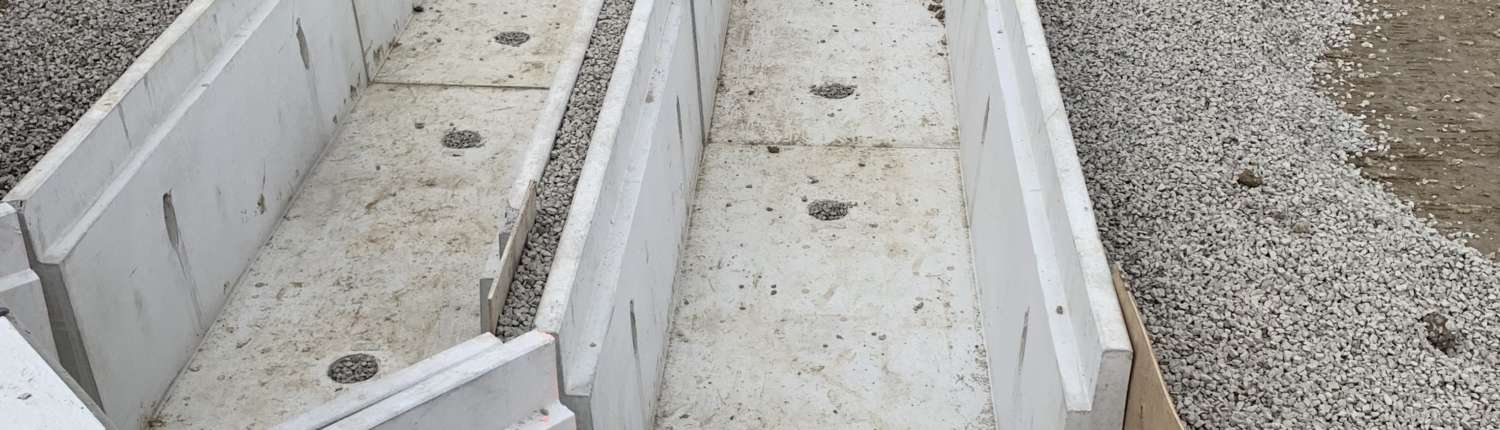

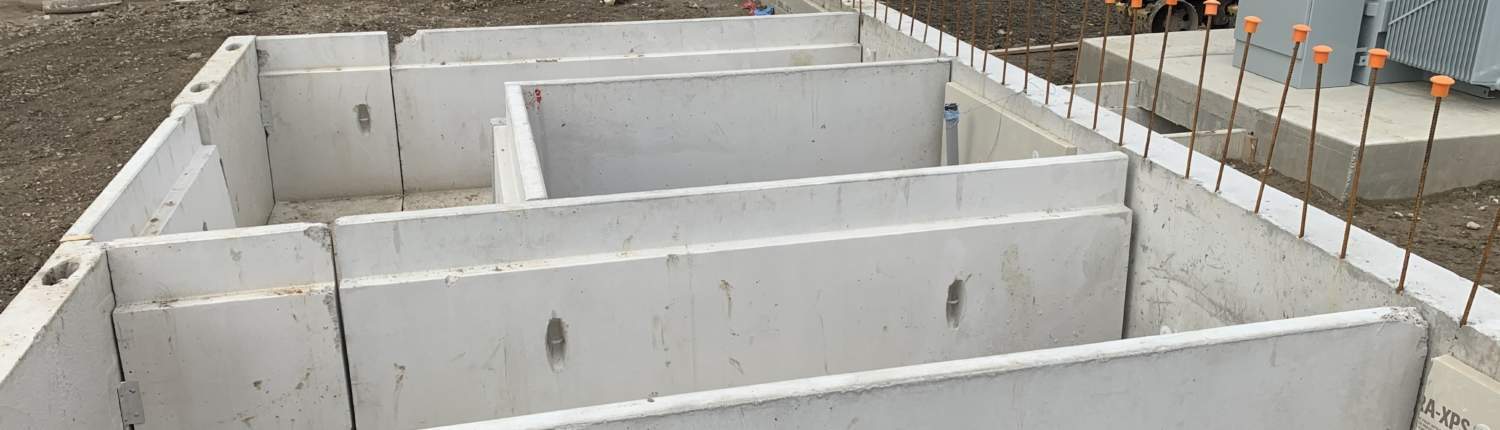

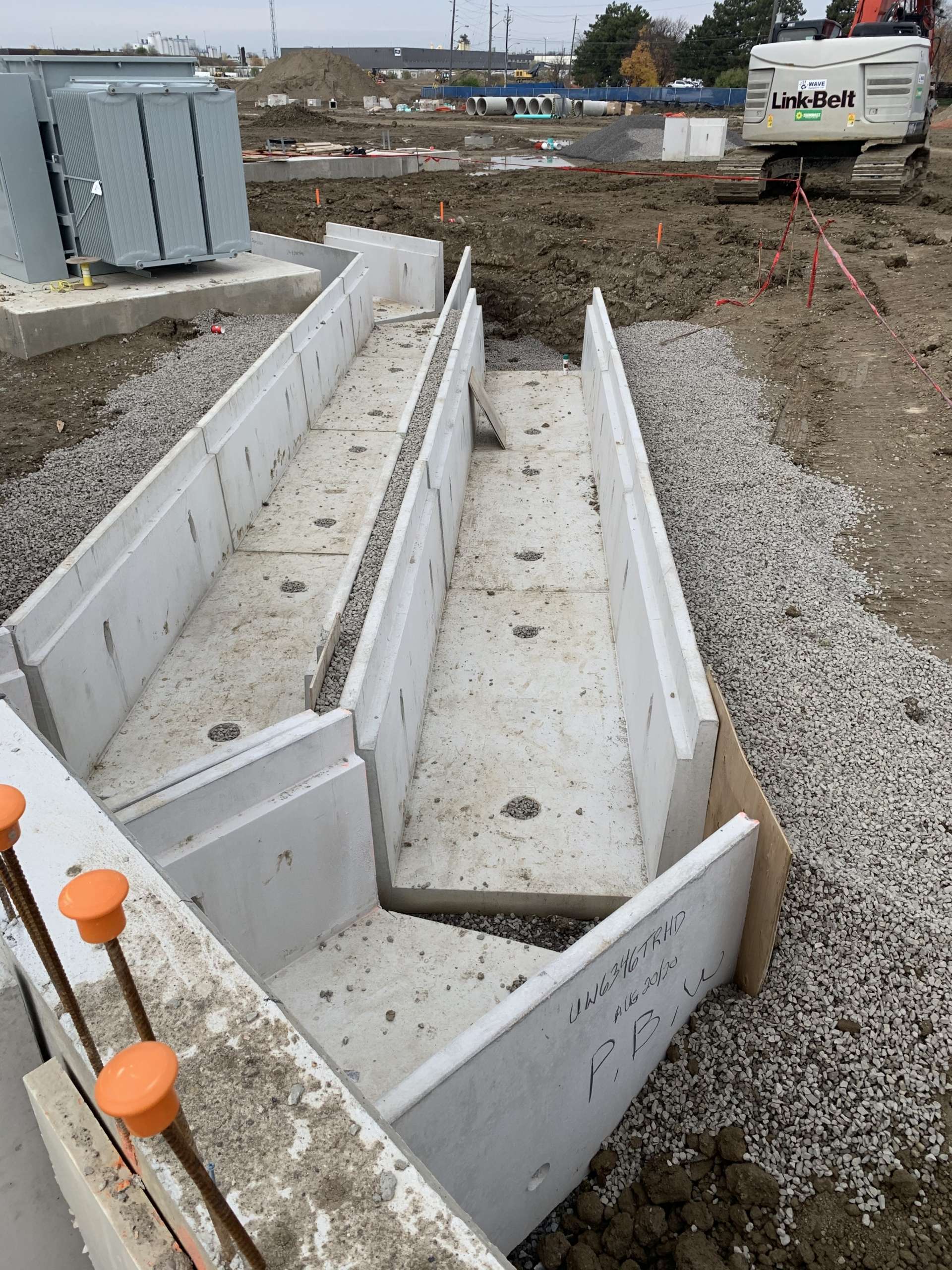

SPLIT TRENCHING
Facilitating diverse routing options, ensuring flexibility and streamlined cable distribution for varied infrastructural needs.

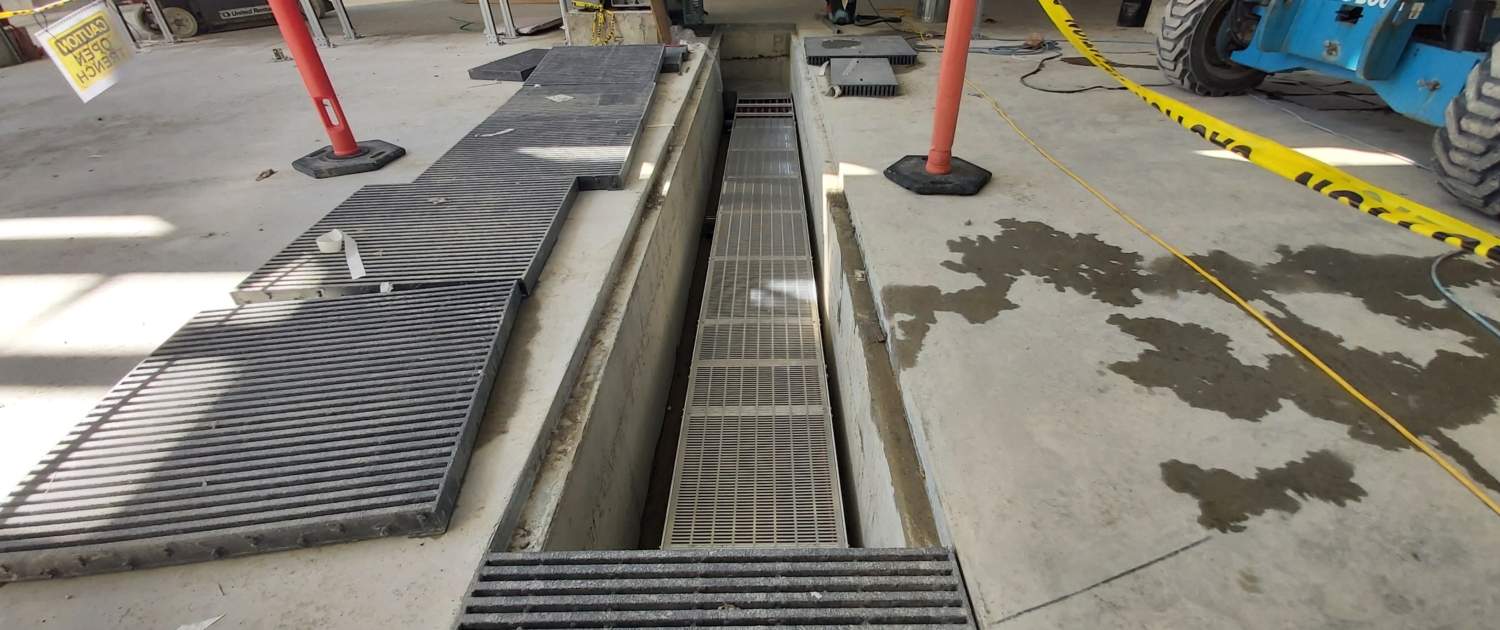

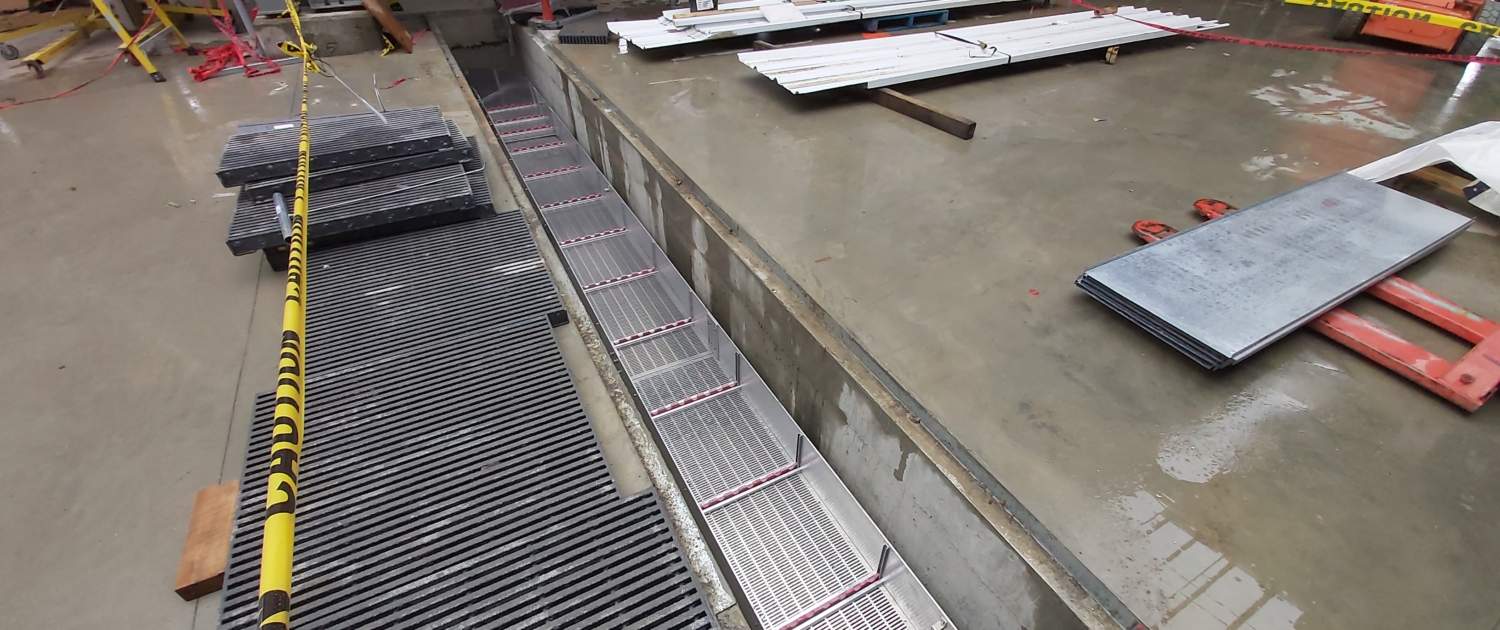

ASSORTED VENTILATION TYPES
Featuring a range of choices such as goose necks, standard gratings, raised gratings, and more. Ensure optimal airflow and protection for any project requirements.

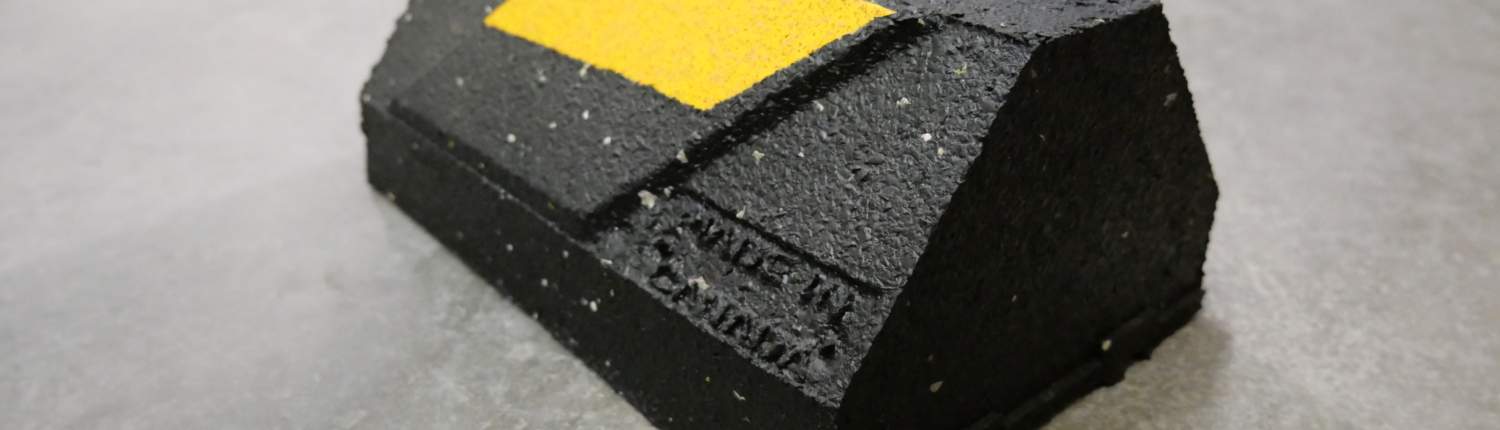

100% RECYCLED RUBBER SUPPORT
Minimizes vibrations, withstands freezing conditions, and enables a free-air rating, ensuring reliable support and durability for your infrastructure.
DIMENSIONS (32" X 32"/32" X 48")
Rely on our expert designers to assess and recommend the ideal trench size that perfectly suits your project's specific needs.

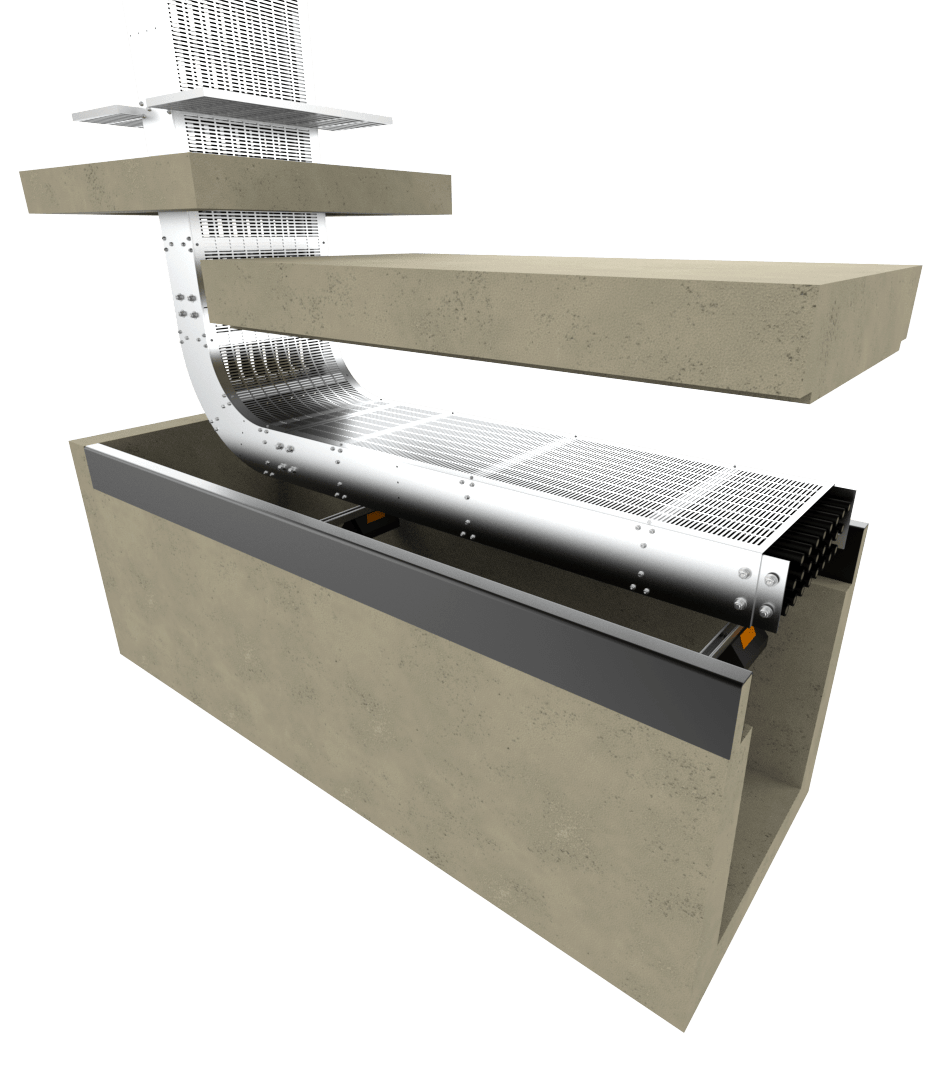

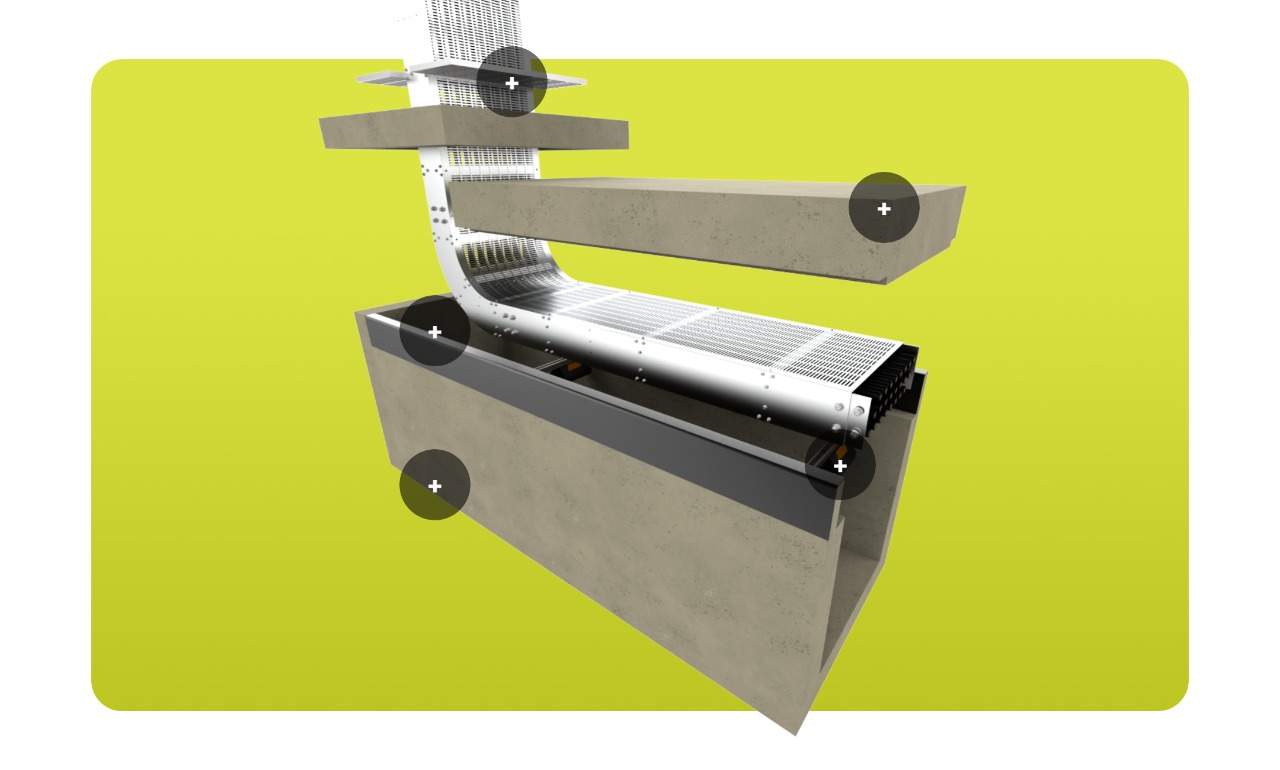

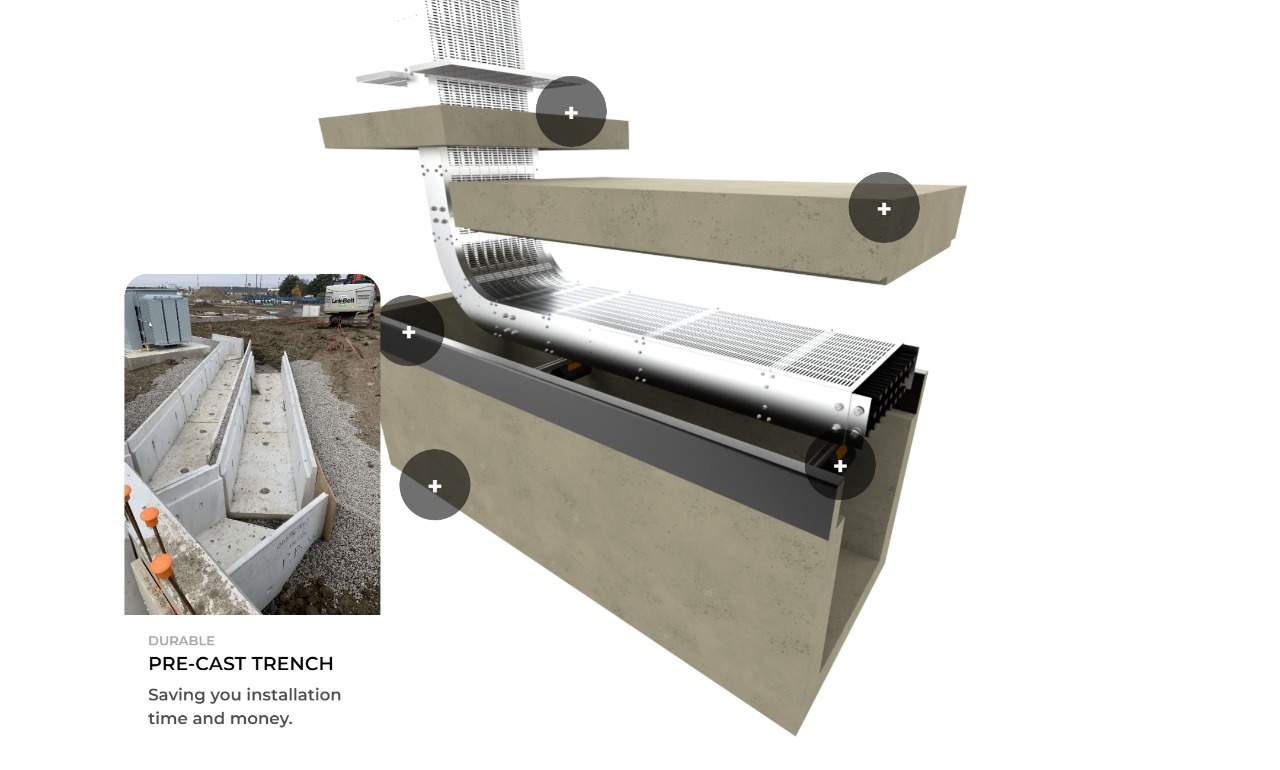

WHAT MAKES UP THE UNDERGROUND SYSTEM?

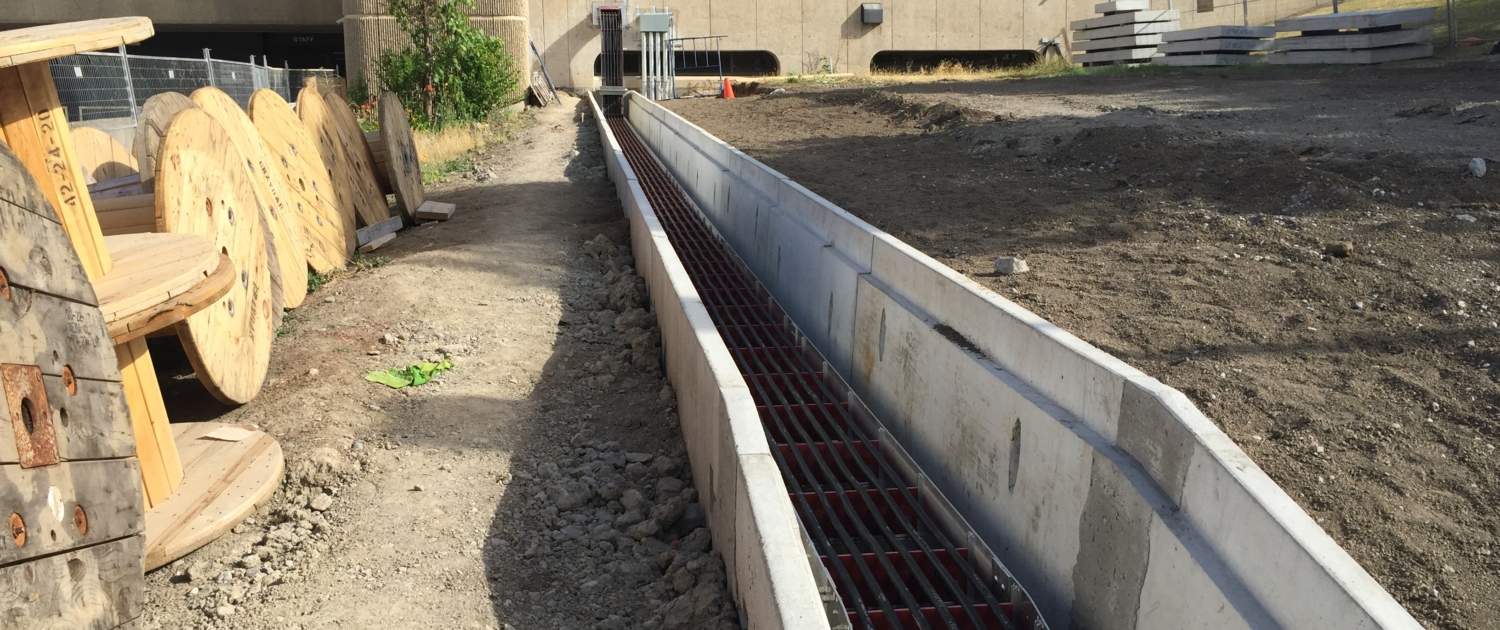

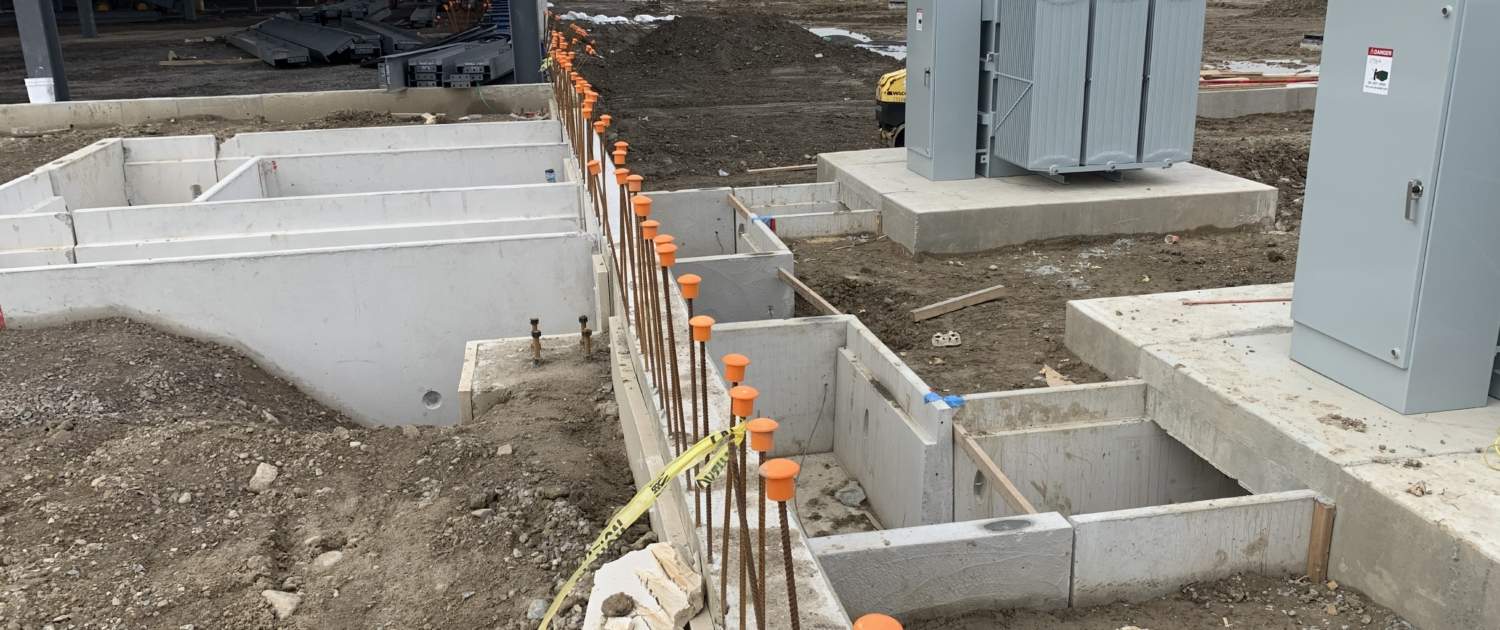

PRE-CAST TRENCH

Saving you installation time and money.

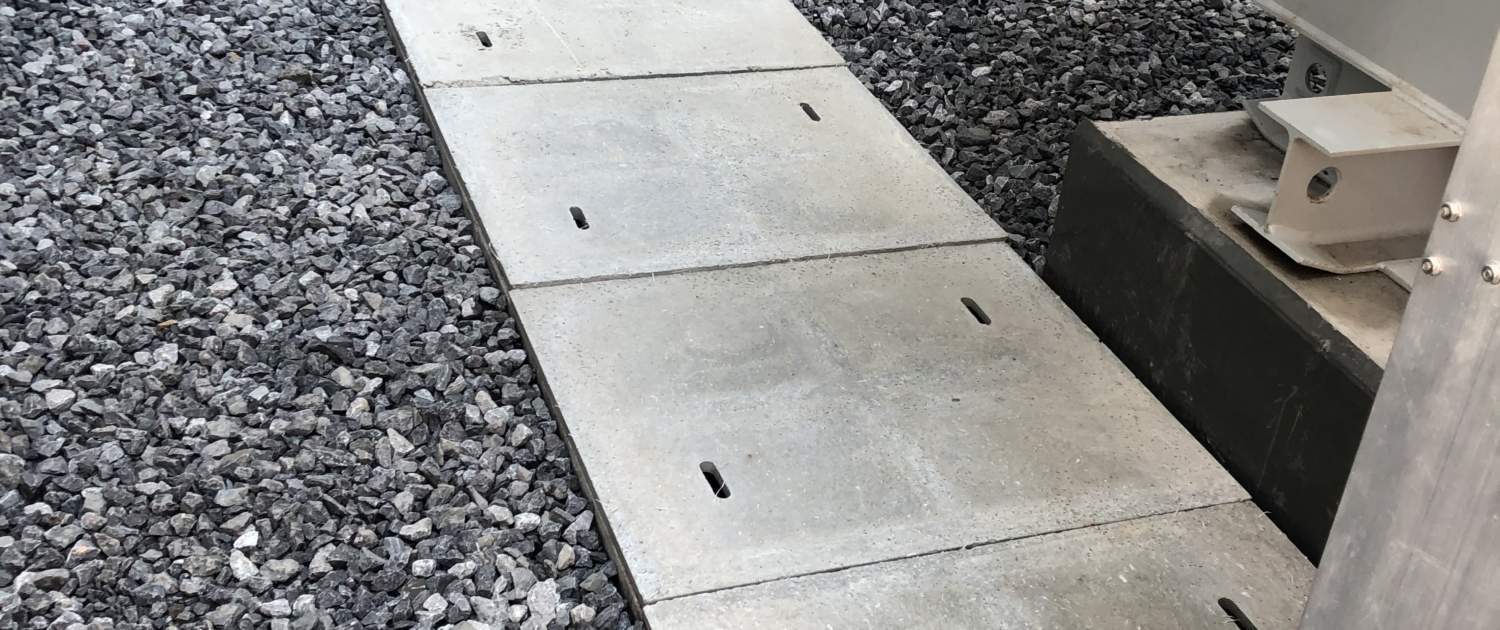

Ventilated Lid Grated Cover

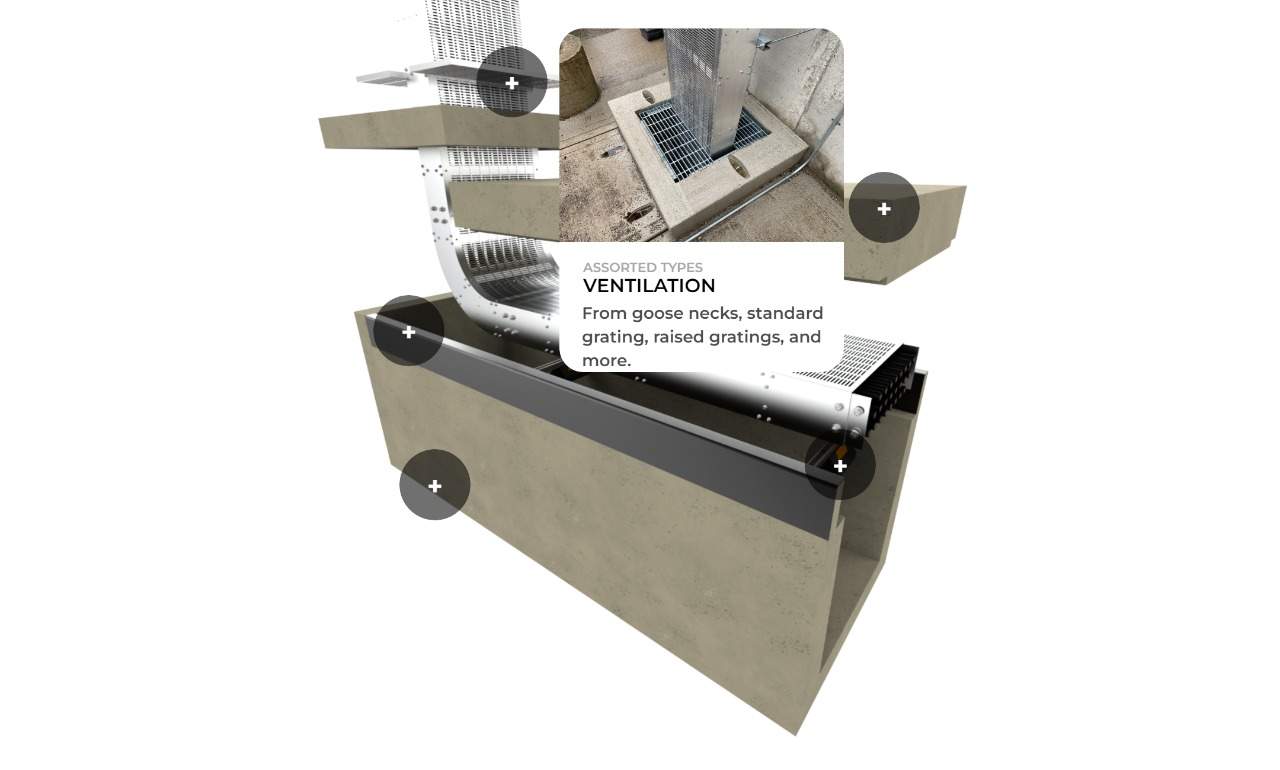

ASSORTED VENTILATION

From goose necks, standard grating, raised gratings, and more.

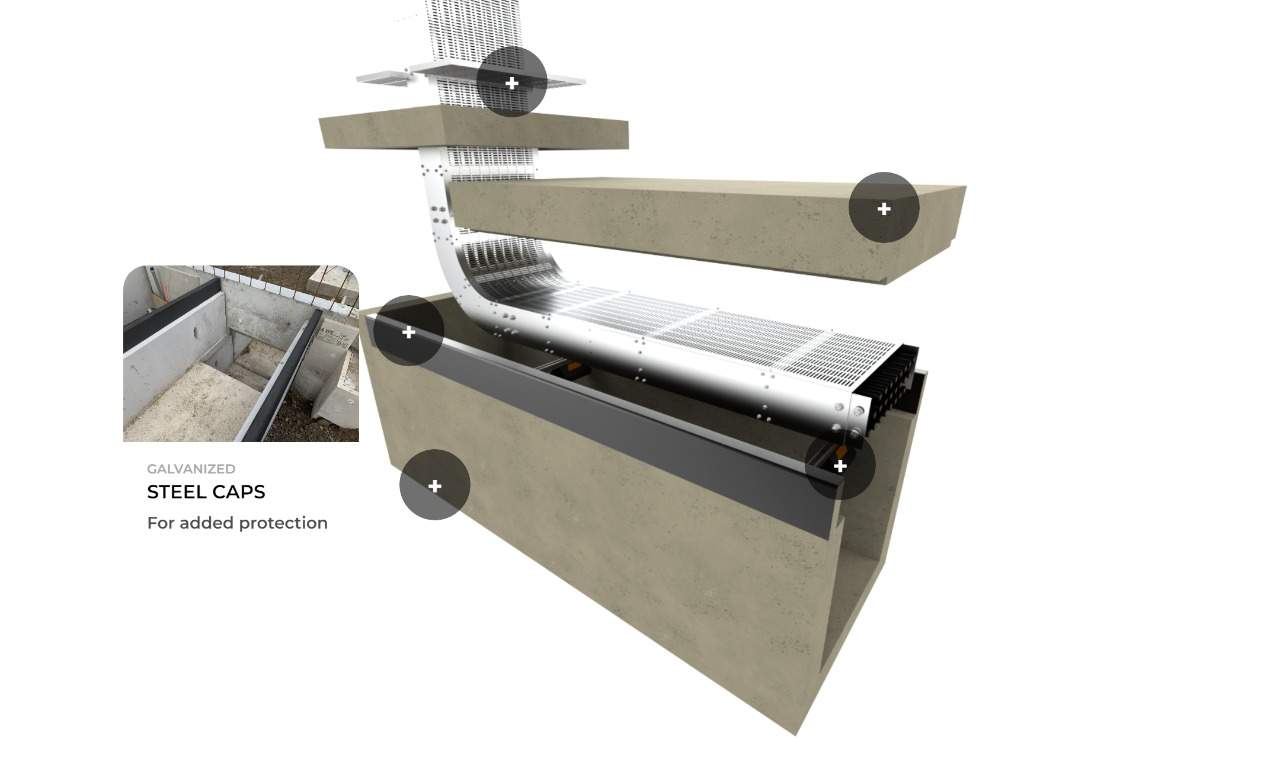

STEEL CAPS

They’re galvanized and are for added protection.

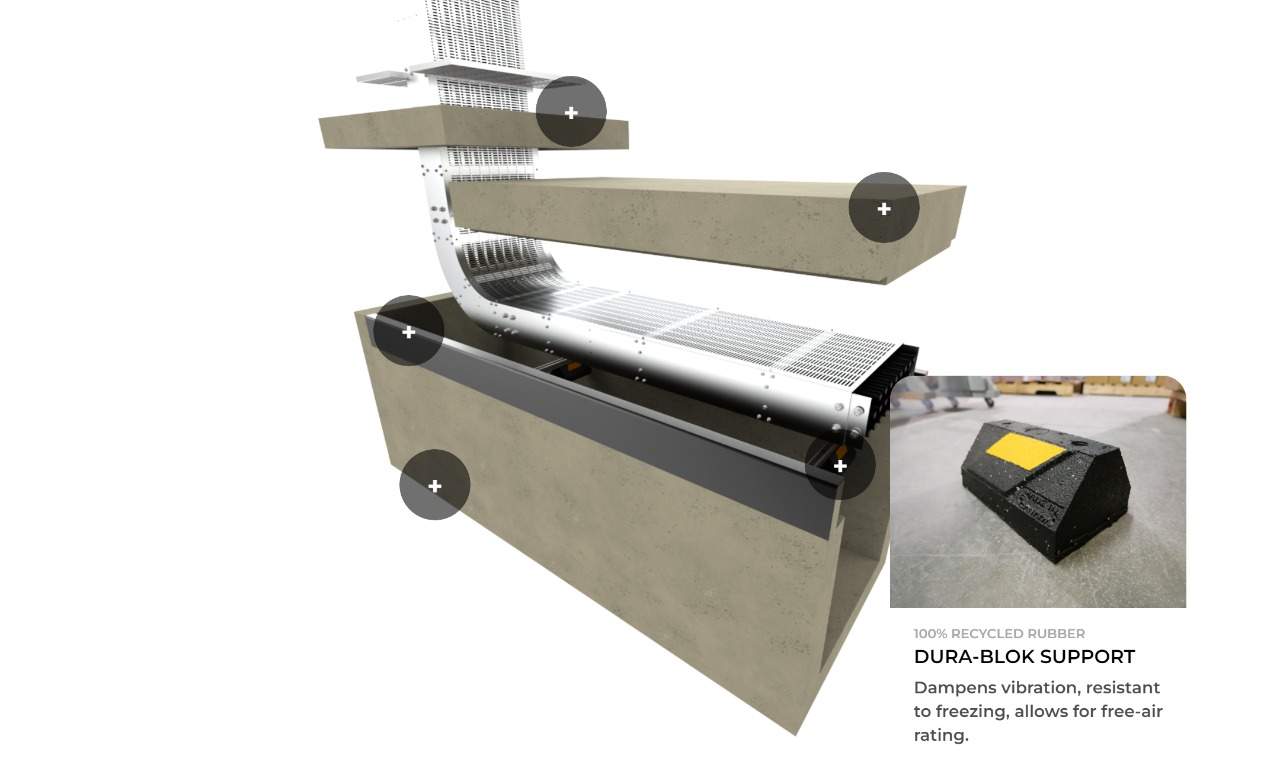

100% RECYCLED RUBBER SUPPORT

Dampens vibration, resistant to freezing, allows for free-air rating.

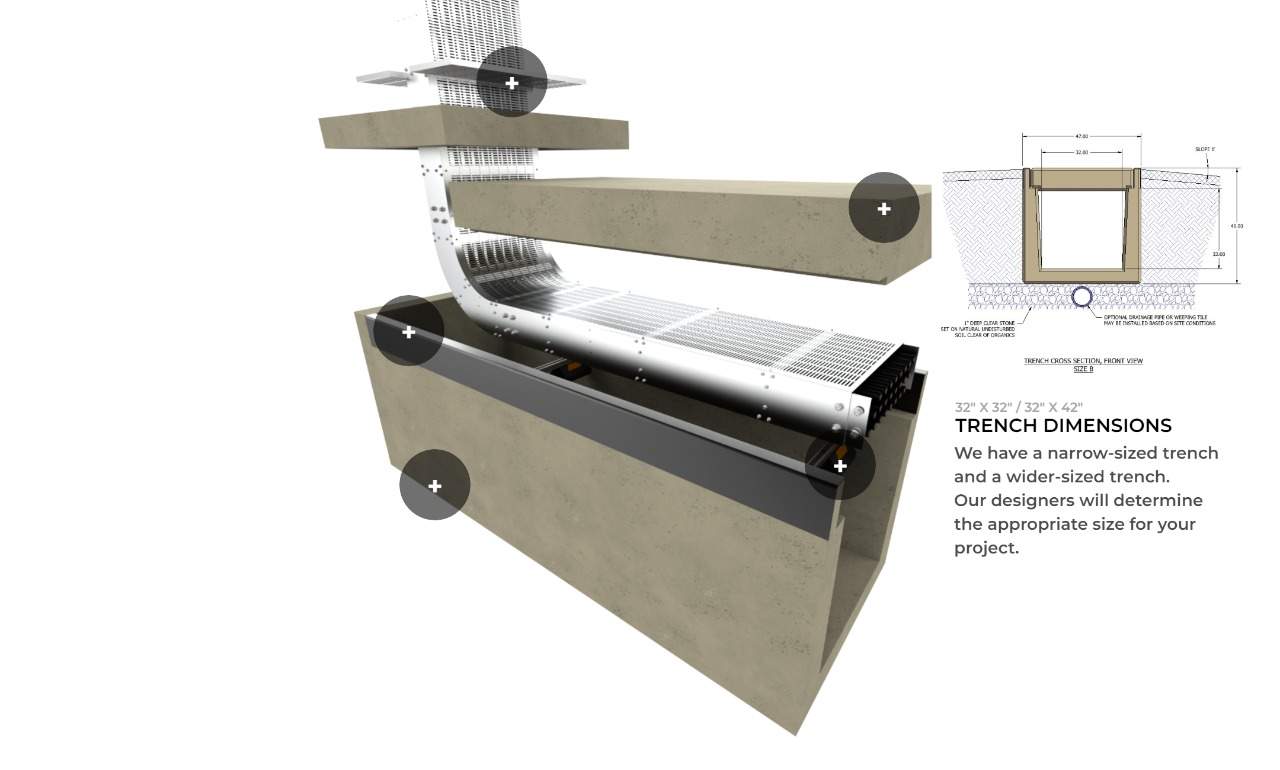

TRENCH SIZES

We offer trenches in 32″x32″ and 32″x48″. Our designers will determine the appropriate size for your project.
