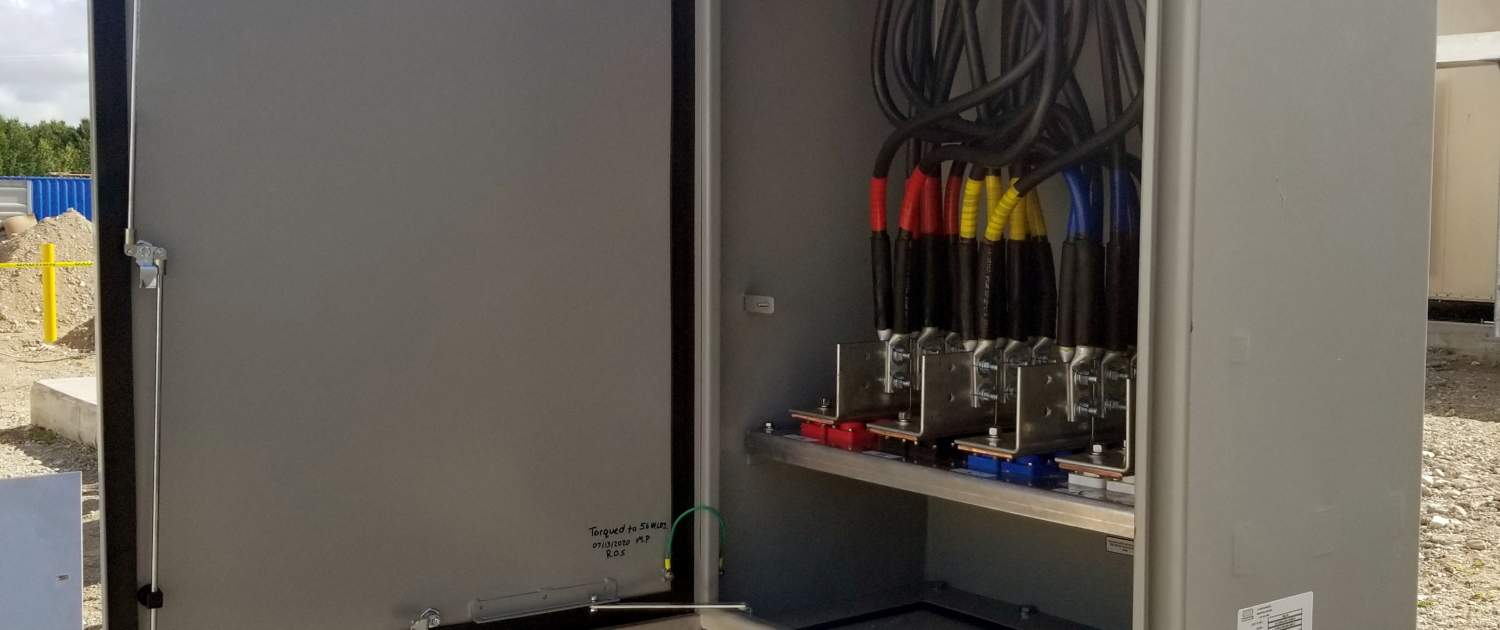

OUR QUICK CONNECT PANELS

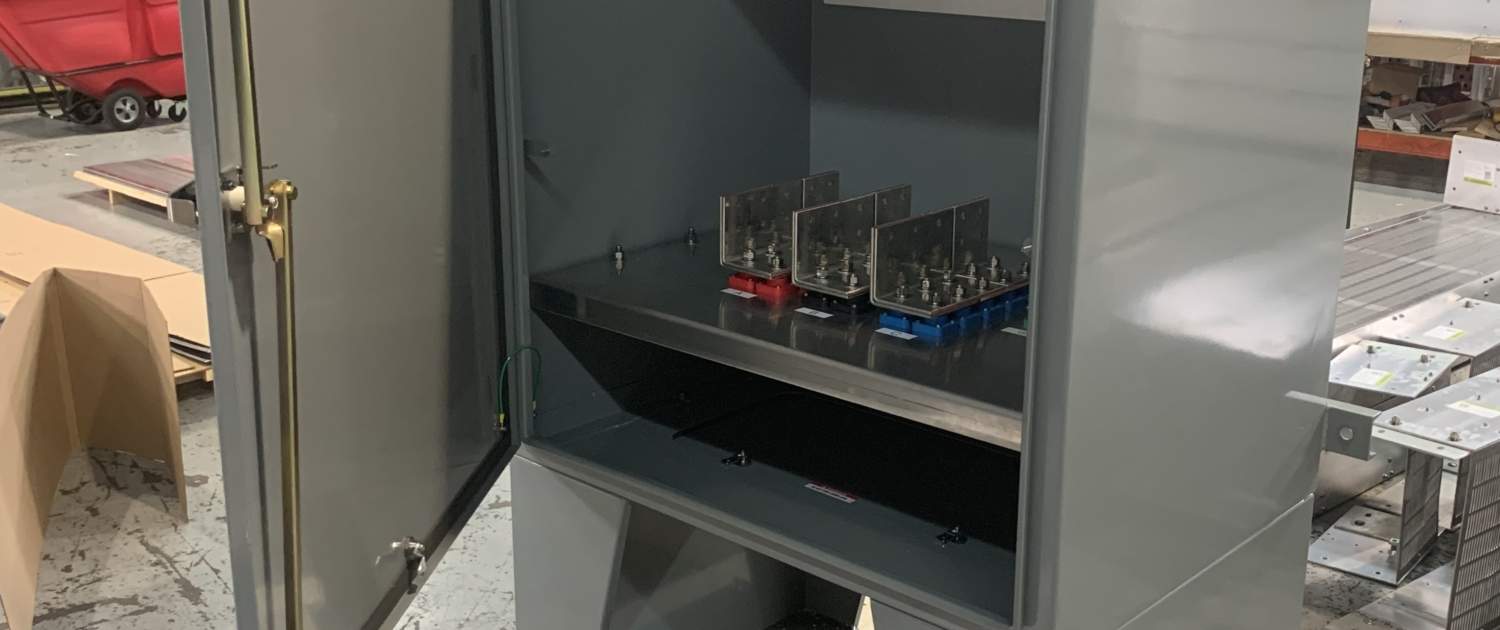

BeforeAfter

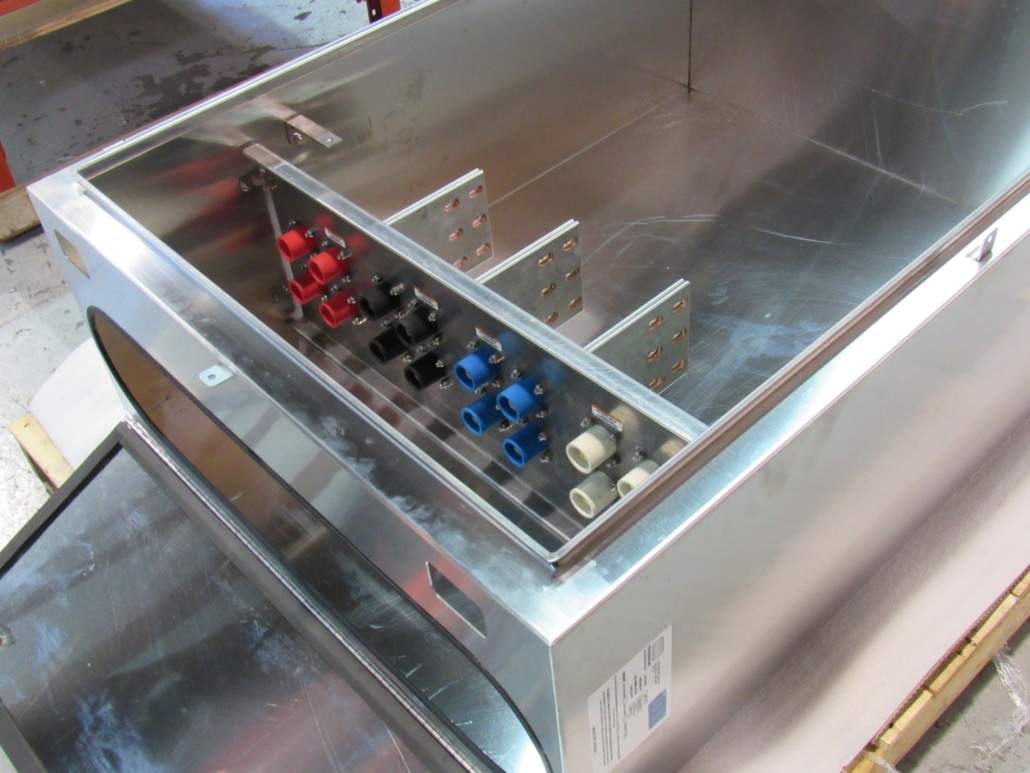

FEATURES

  • Welded metal construction
  • Enclosure rating up to 4X
  • Colour-coded camlock receptacles
  • Custom colours available
  • Ventilated enclosure
  • While-in-use preventative access
  • Available in a variety of voltage configurations
  • Standard current ratings up to 4000A
  • Configurable for Inlet (Generator) or Outlet (Load Bank, Event Power)

APPLICATIONS

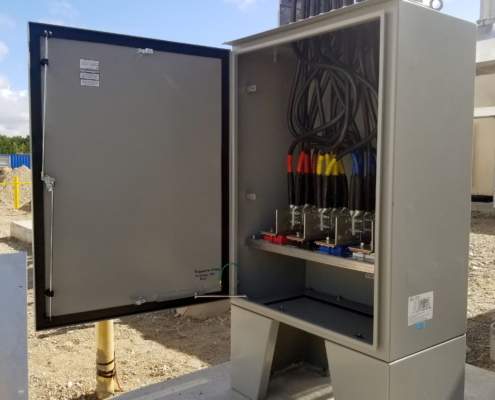

  • Permanent fixture to quickly connect mobile generators to get your business online and back on schedule
  • Ability to recover quickly without need of permanent generators
  • Avoid safety hazards of connecting generators directly to distribution equipment

CERTIFICATIONS

Power Bus Way manufactures high quality electrical enclosures that exceed CSA specifications. Custom Quick Connect Panels have never been easier to order.

Our designs are built for specific applications and can include factory installed protection devices and/or instrumentation.

We exceed industry standards and provide a smaller footprint for Quick Connect Panels. Our 400A panel is more compact than others on the market.

QUICK CONNECTCSA C22.2 No. 94.1/94.2 | CSA C22.2 No. 178.1-14 | UL 50/50E | UL 1008 | UL 1773
QC+ BREAKERCSA C22.2 No. 94.1/94.2 | CSA C22.2 No. 244:19 | UL 50/50E | UL 891
QC + DISCONNECTCSA C22.2 No. 94.1/94.2 | CSA C22.2 No. 244:19 | UL 50/50E | UL 891
QC + MANUAL TRANSFER SWITCHCSA C22.2 No. 94.1/94.2 | CSA C22.2 No. 178.1-14 | UL 50/50E | UL 1008 | UL 1773

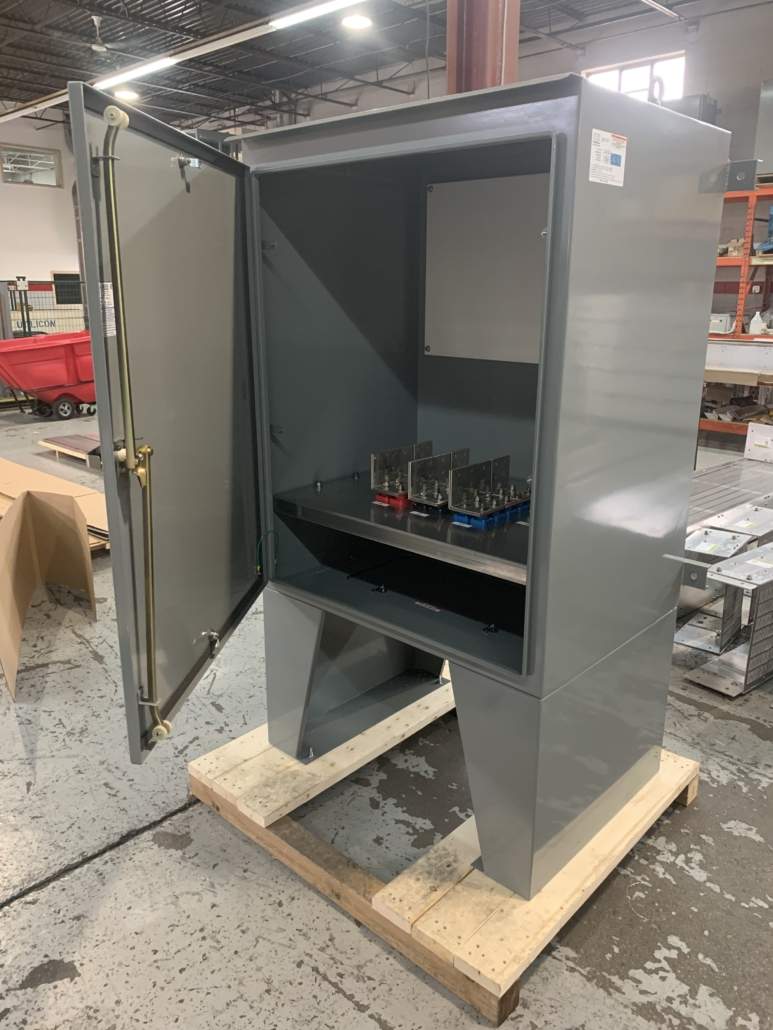

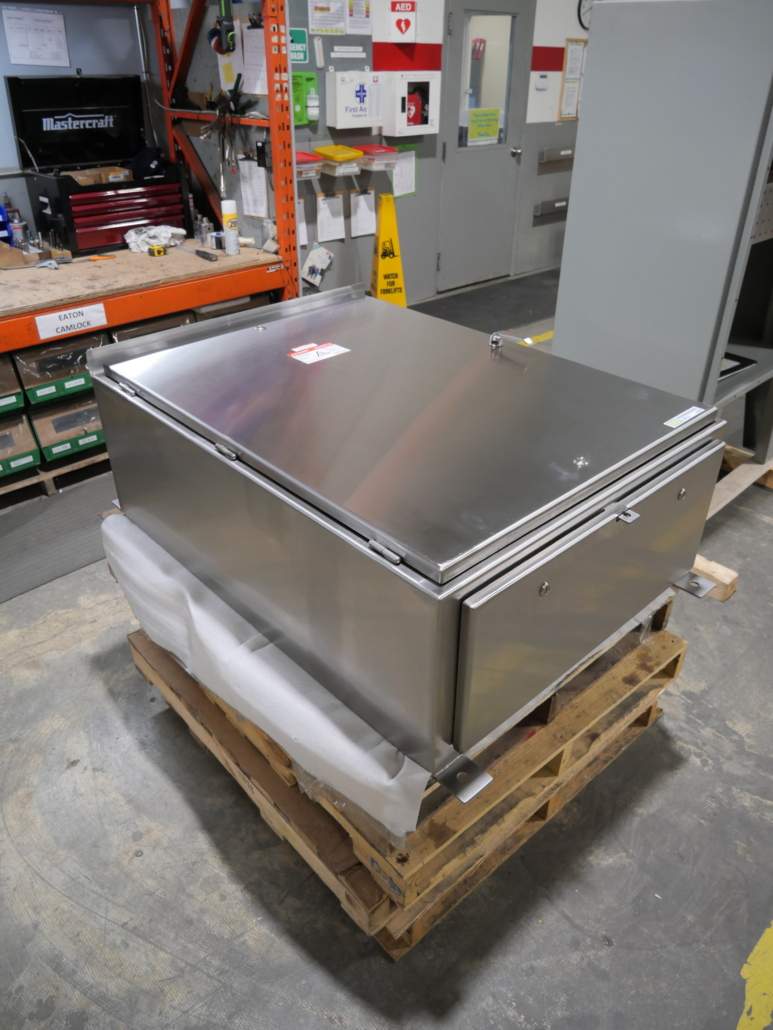

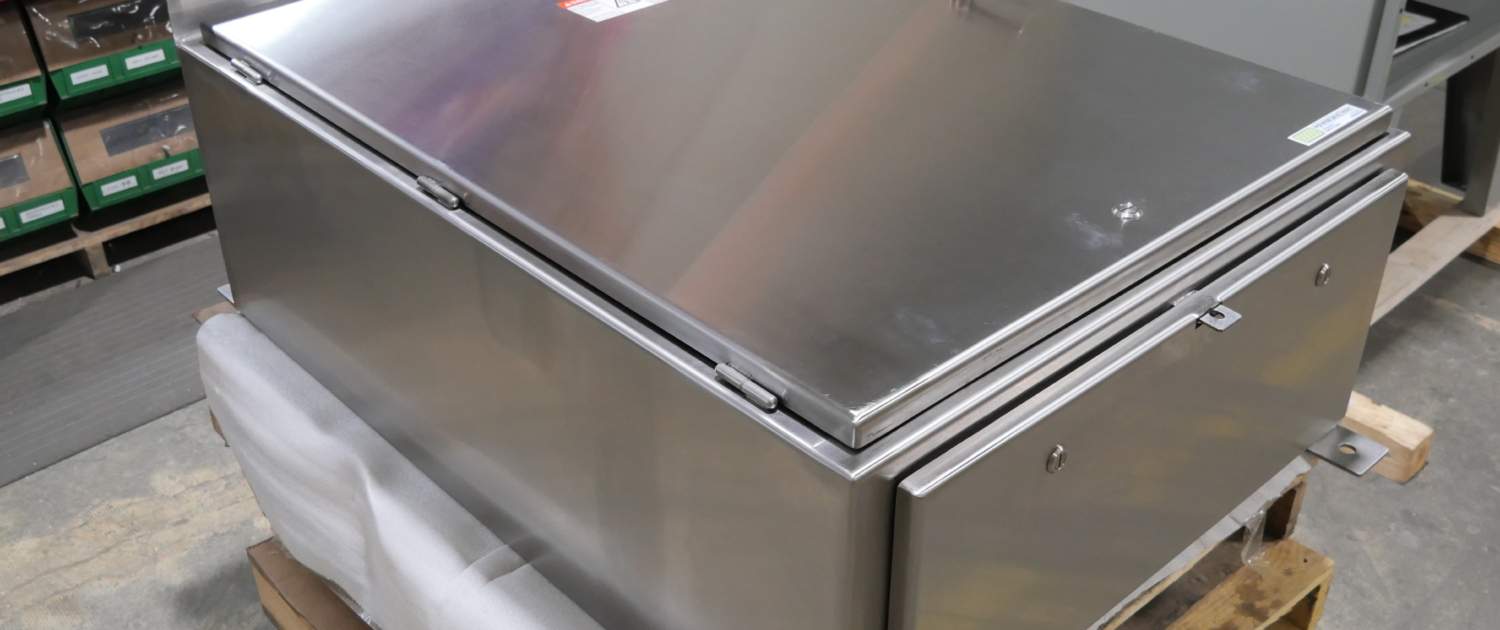

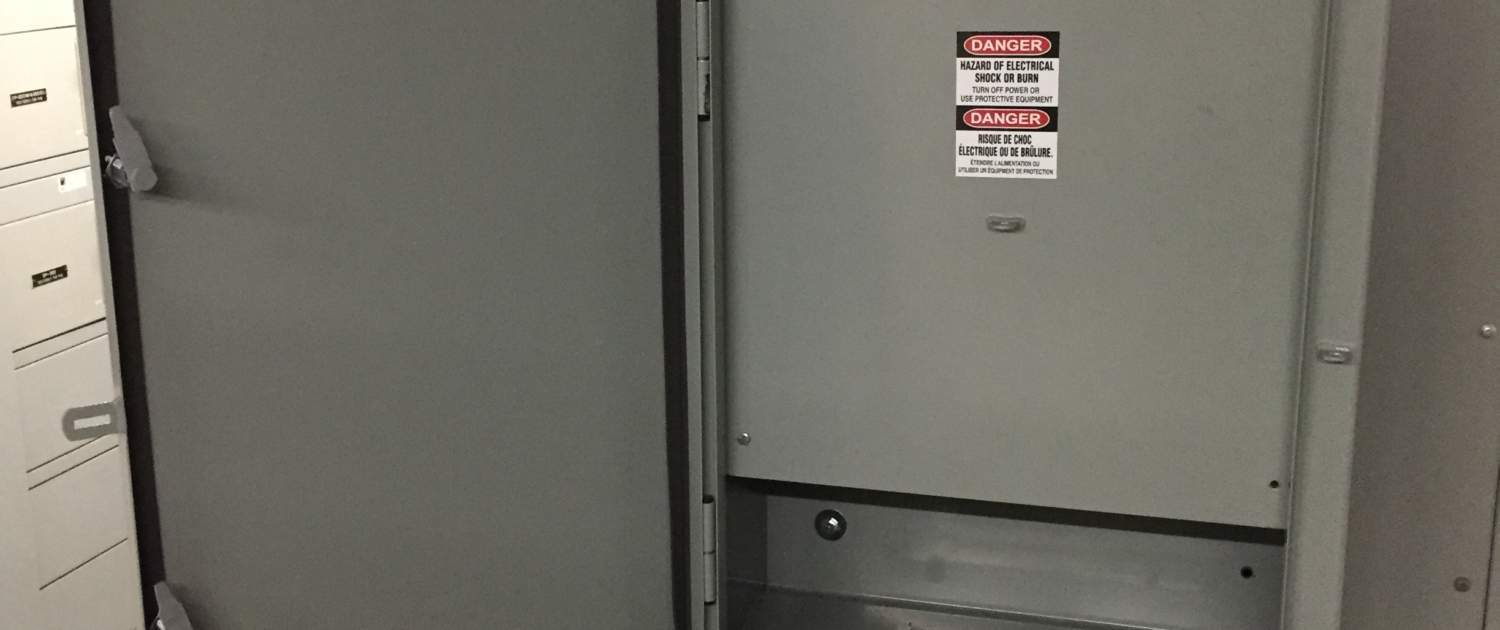

800A QC
(Cover On)

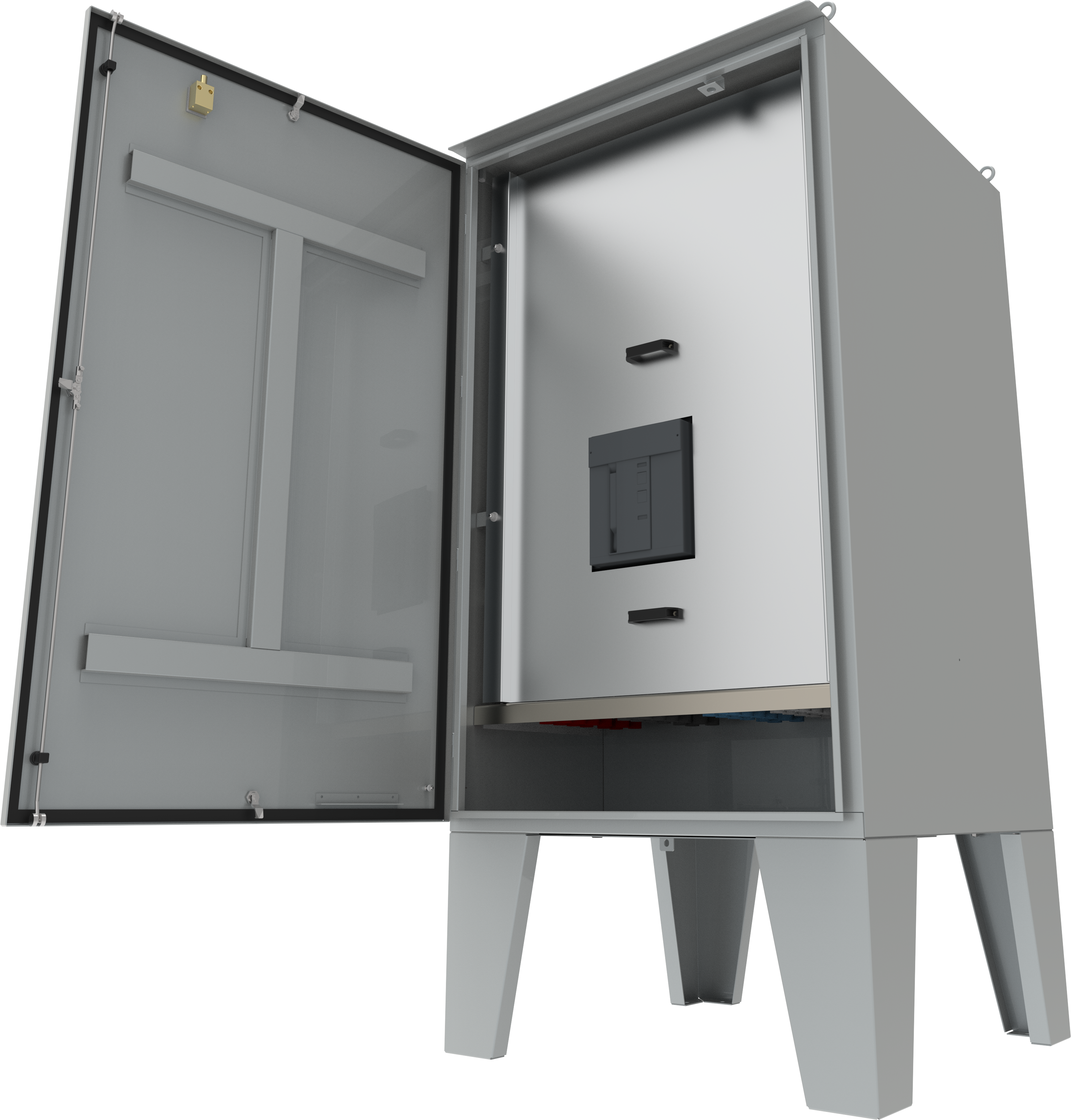

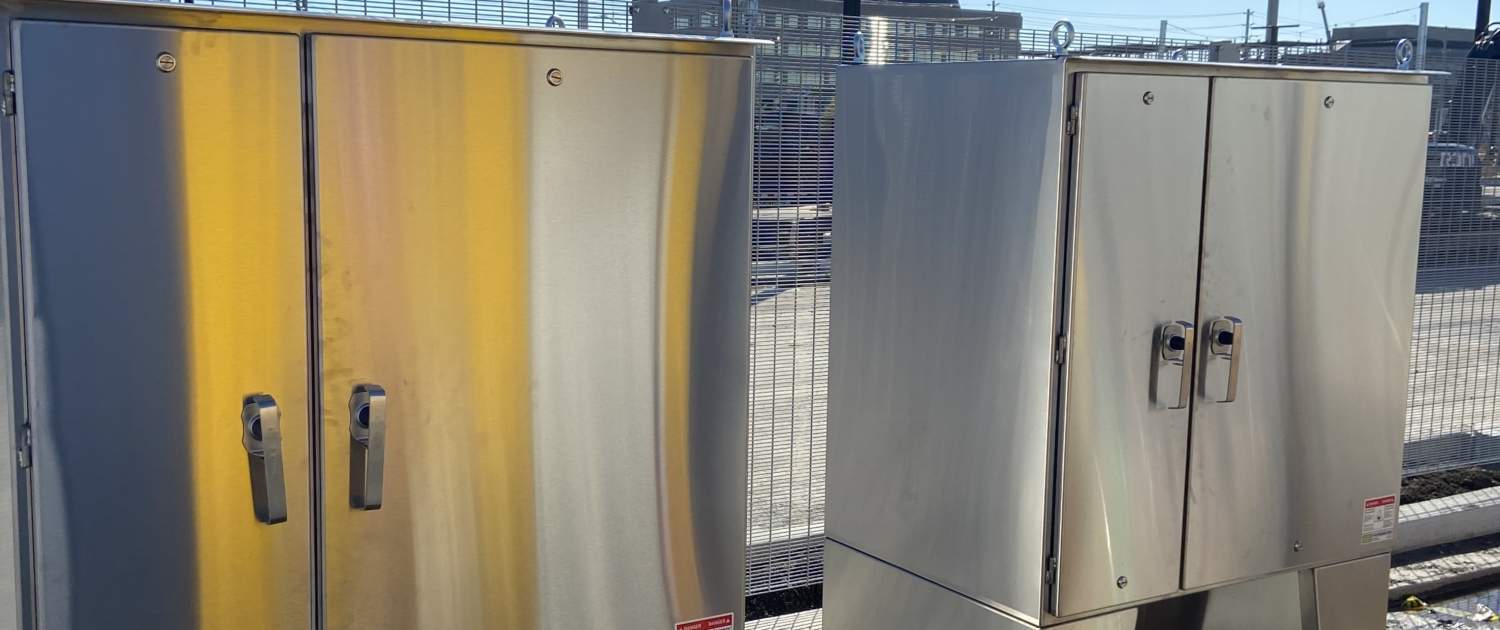

5000A 65kA
Breaker w/ LSIG

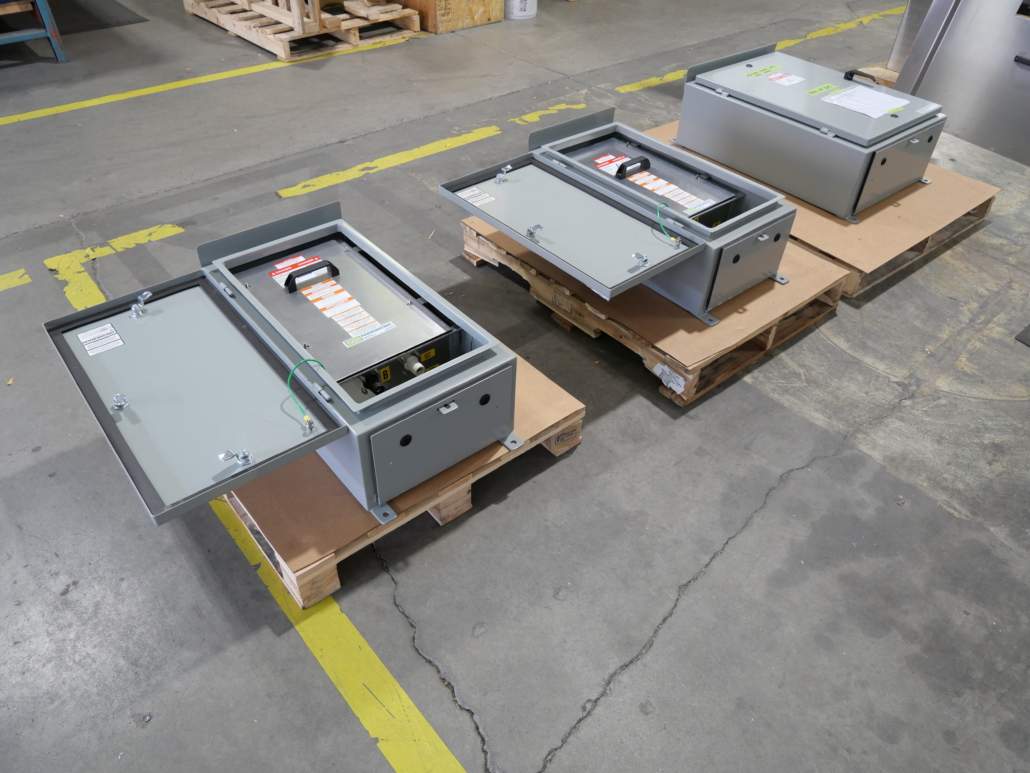

800A 65kA
Breaker w/ LSIG

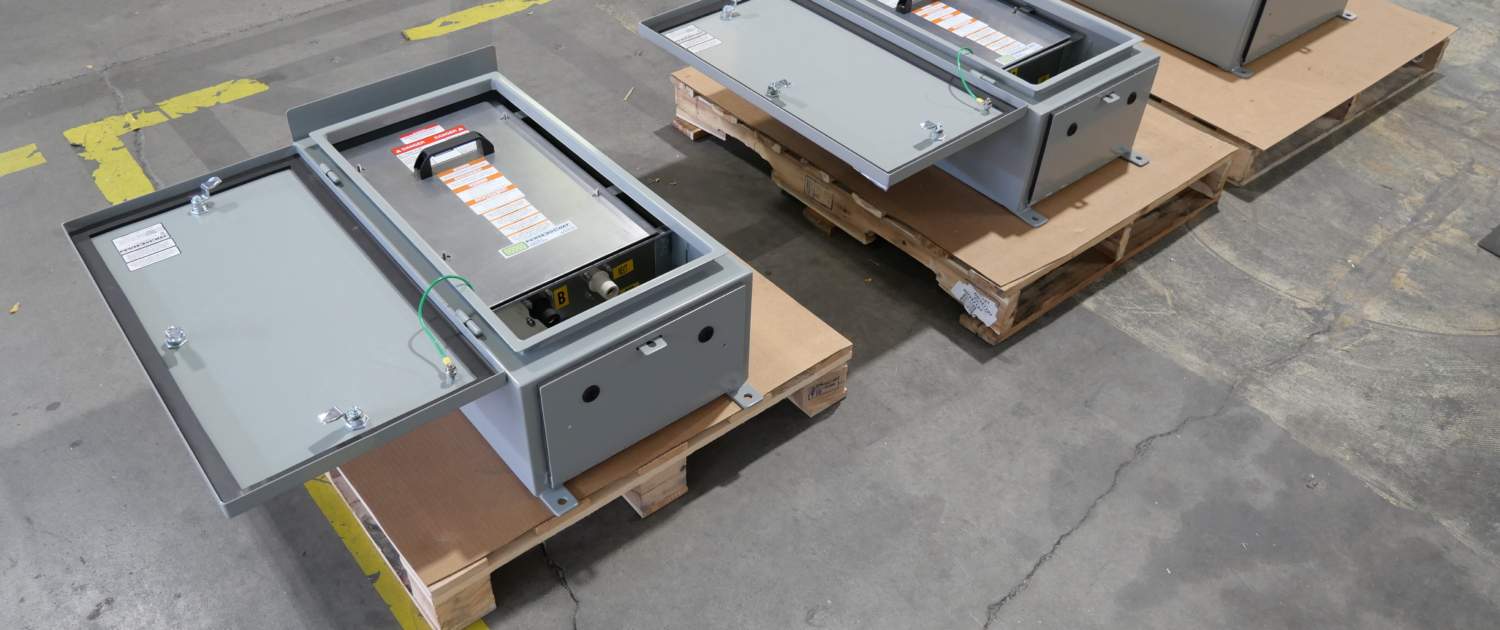

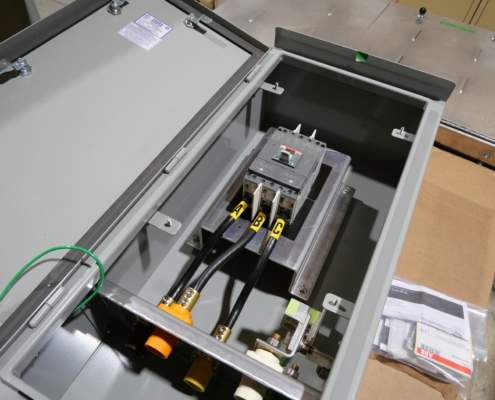

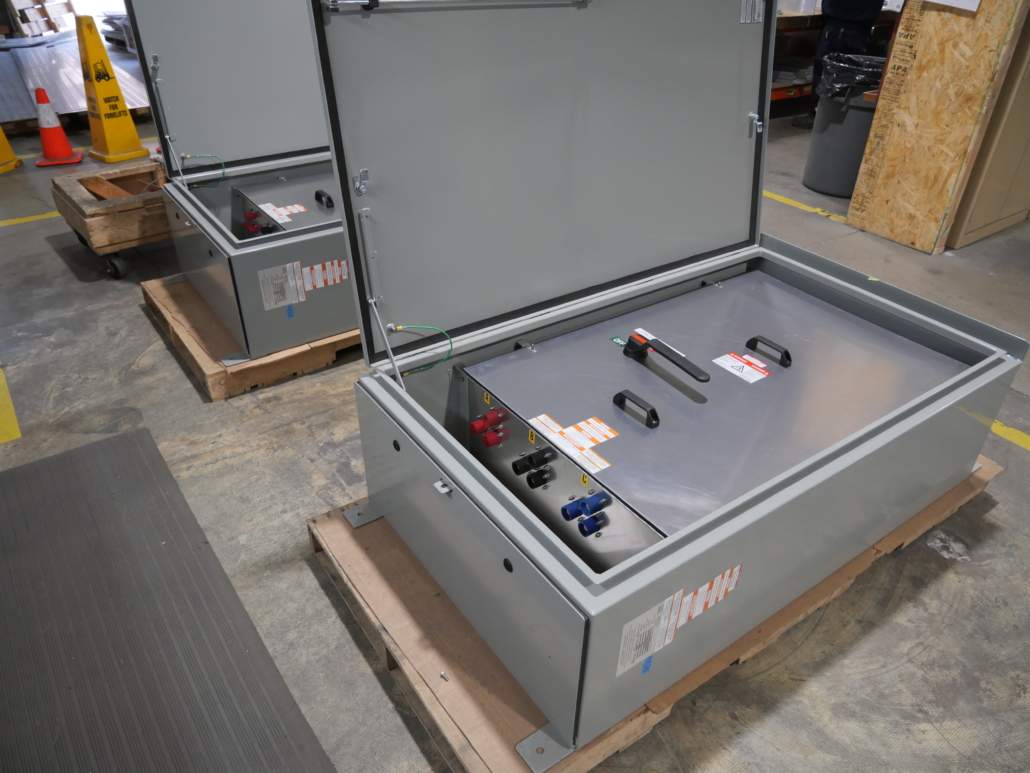

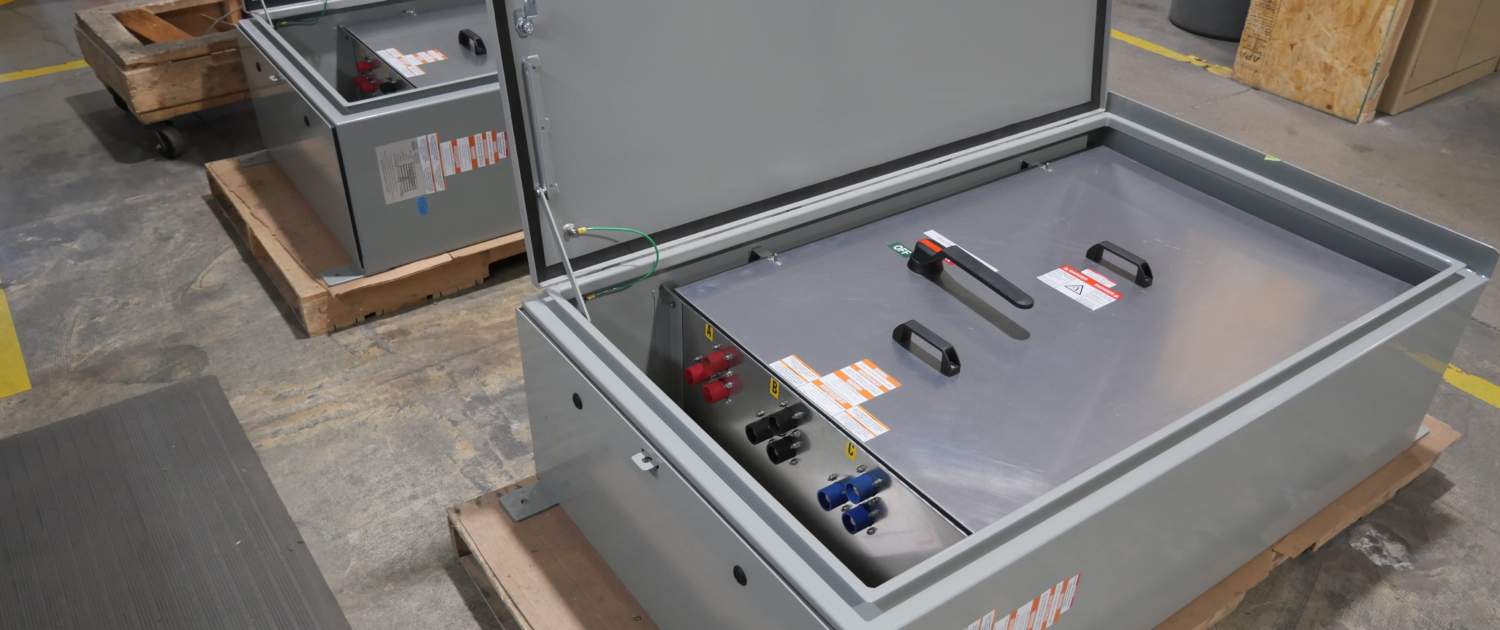

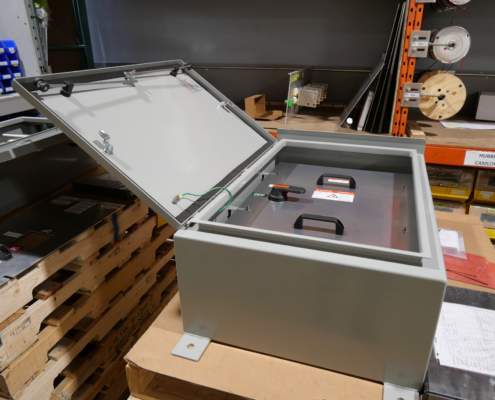

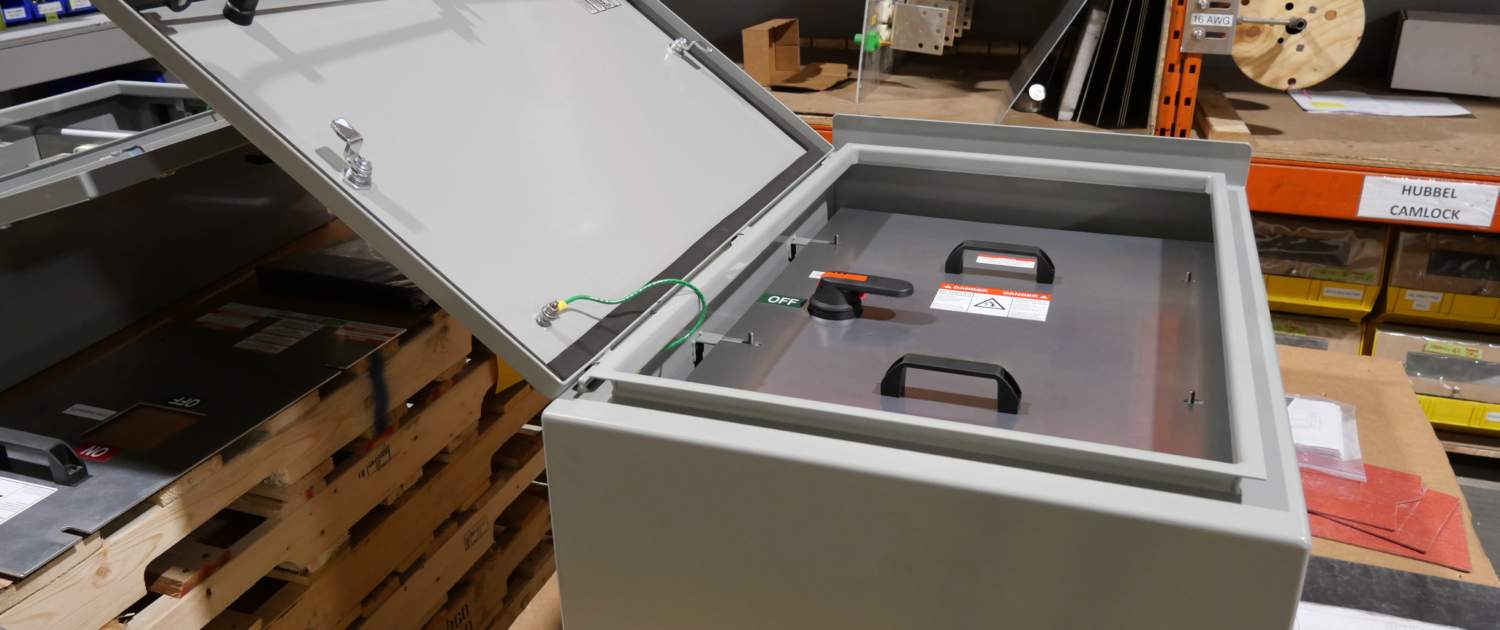

100A w/
Non-Fused
Disconnect

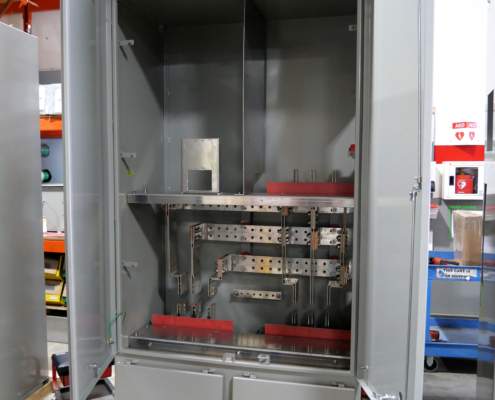

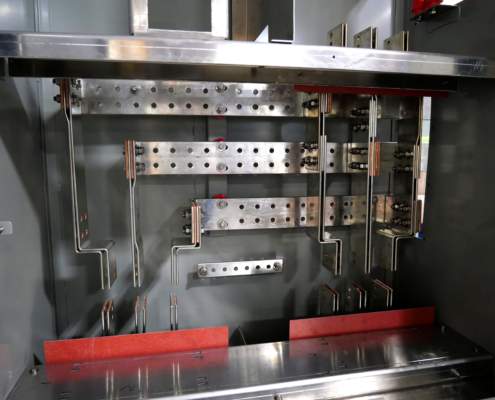

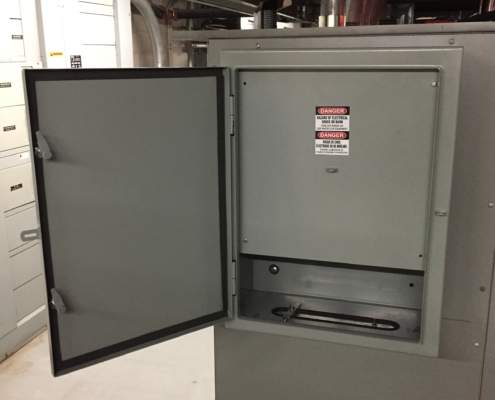

6000A Custom
Dual Cover Wireway Box

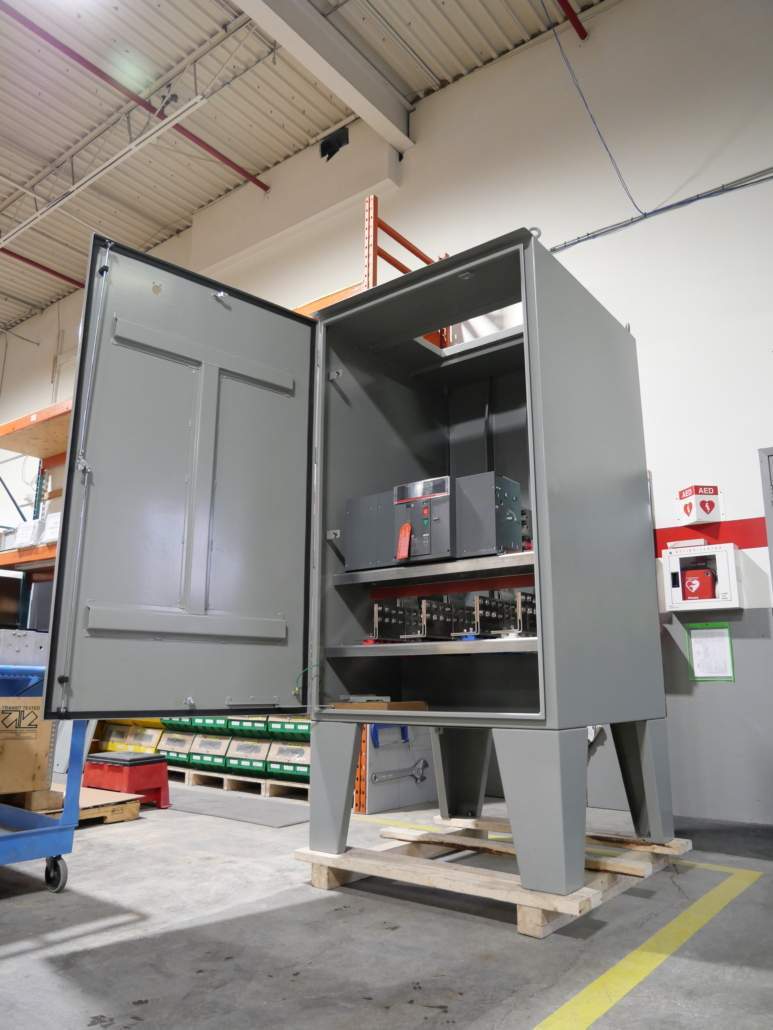

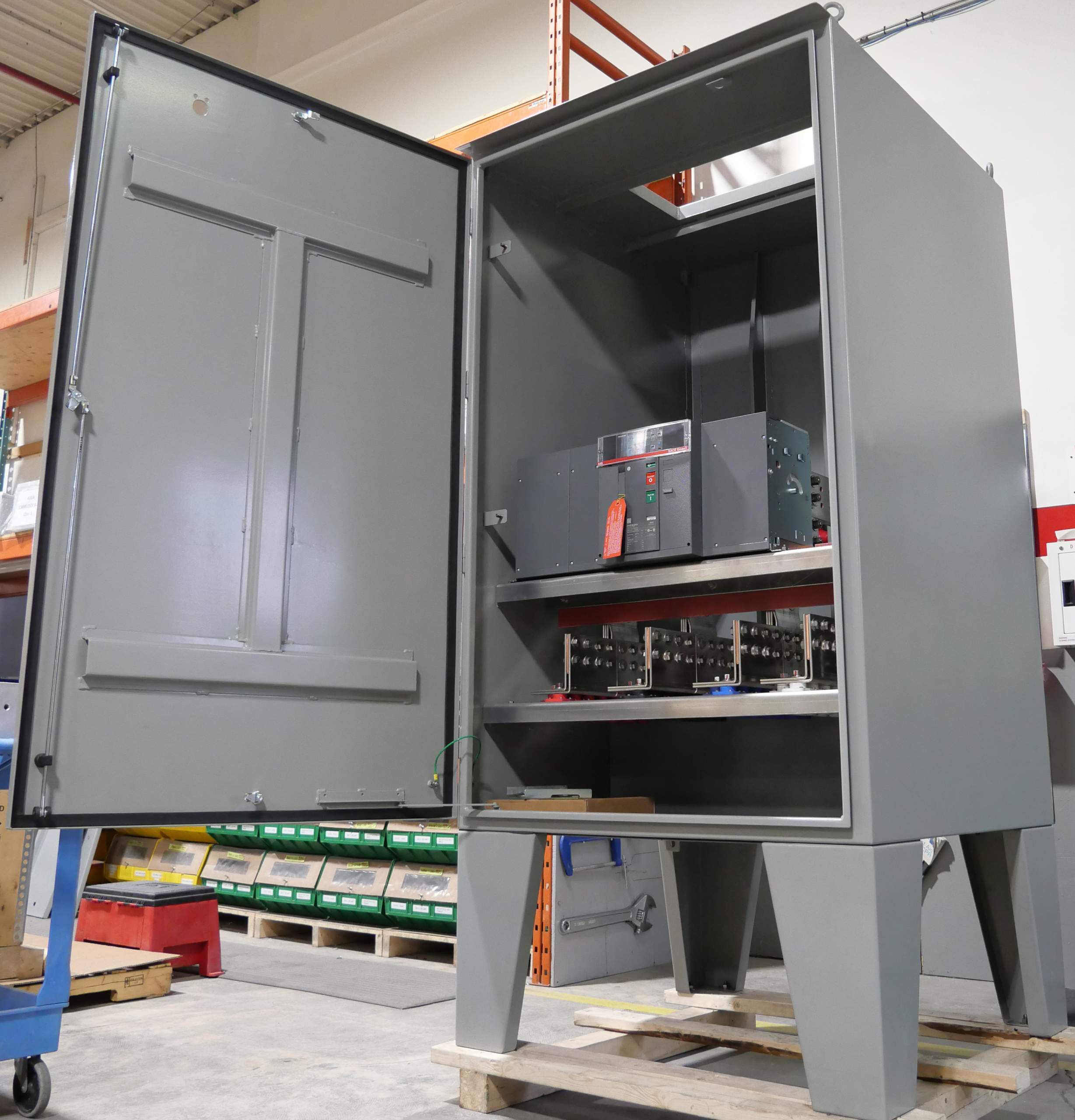

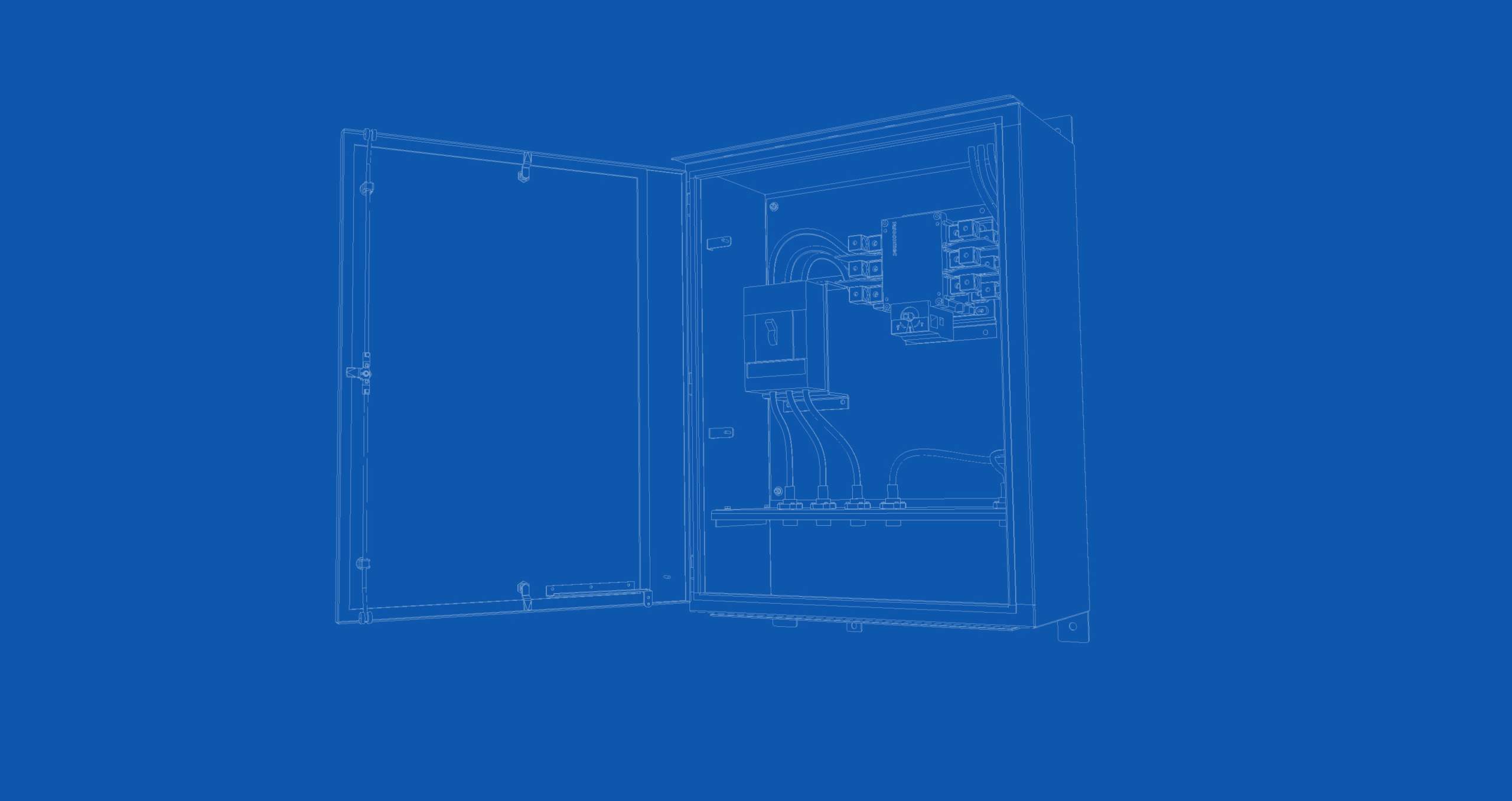

400A Breaker
w/ MTS

SPECIFICATIONS

QUICK CONNECT

CURRENT RATING100A-4000A
VOLTAGEUS1: 120/240V
US2: 240V
US3: 208Y/120V
US4: 480Y/277V
US5: 480V
CA1: 120/240V
CA2: 240V
CA3: 208Y/120V
CA4: 600/347V
CA5: 600V
CONNECTION TYPE (MAX 3)M: Male Camlock
F: Female Camlock
L: Mechanical Lugs
ENCLOSURE TYPE2, 3, 3R, 3RX, 4, 4X
ENCLOSURE MATERIALAL: 5052 Aluminum
MS: Mild Steel
SS: 304 Stainless Steel
SS16: 316 Stainless Steel
MOUNTING PROVISIONWM: Wall Mount
FM: Floor Mount
PM: Pad Mount

QC + BREAKER

CURRENT RATING100A-4000A
VOLTAGEUS1: 120/240V
US2: 240V
US3: 208Y/120V
US4: 480Y/277V
US5: 480V
CA1: 120/240V
CA2: 240V
CA3: 208Y/120V
CA4: 600/347V
CA5: 600V
CONNECTION TYPE (MAX 3)M: Male Camlock
F: Female Camlock
L: Mechanical Lugs
ENCLOSURE TYPE2, 3, 3R, 3RX, 4, 4X
ENCLOSURE MATERIALAL: 5052 Aluminum
MS: Mild Steel
SS: 304 Stainless Steel
SS16: 316 Stainless Steel
MOUNTING PROVISIONWM: Wall Mount
FM: Floor Mount
PM: Pad Mount
PROTECTION DEVICEBRK25: Molded Case, 25kA
BRK25LSIG: Molded Case, 25kA, LSIG
BRK65: Molded Case, 65kA
BRK65LSIG: Molded Case, 65kA, LSIG

QC + DISCONNECT

CURRENT RATING100A-1200A
VOLTAGEUS1: 120/240V
US2: 240V
US3: 208Y/120V
US4: 480Y/277V
US5: 480V
CA1: 120/240V
CA2: 240V
CA3: 208Y/120V
CA4: 600/347V
CA5: 600V
CONNECTION TYPE (MAX 3)M: Male Camlock
F: Female Camlock
L: Mechanical Lugs
ENCLOSURE TYPE2, 3, 3R, 3RX, 4, 4X
ENCLOSURE MATERIALAL: 5052 Aluminum
MS: Mild Steel
SS: 304 Stainless Steel
SS16: 316 Stainless Steel
MOUNTING PROVISIONWM: Wall Mount
FM: Floor Mount
PM: Pad Mount
DISCONNECTNF: Non-Fused
FD: Fused

QC + MTS

CURRENT RATING100A-800A
VOLTAGEUS1: 120/240V
US2: 240V
US3: 208Y/120V
US4: 480Y/277V
US5: 480V
CA1: 120/240V
CA2: 240V
CA3: 208Y/120V
CA4: 600/347V
CA5: 600V
CONNECTION TYPE (MAX 3)M: Male Camlock
F: Female Camlock
L: Mechanical Lugs
ENCLOSURE TYPE2, 3, 3R, 3RX, 4, 4X
ENCLOSURE MATERIALAL: 5052 Aluminum
MS: Mild Steel
SS: 304 Stainless Steel
SS16: 316 Stainless Steel
MOUNTING PROVISIONWM: Wall Mount
FM: Floor Mount
PM: Pad Mount
SWITCHMT: Manual Transfer

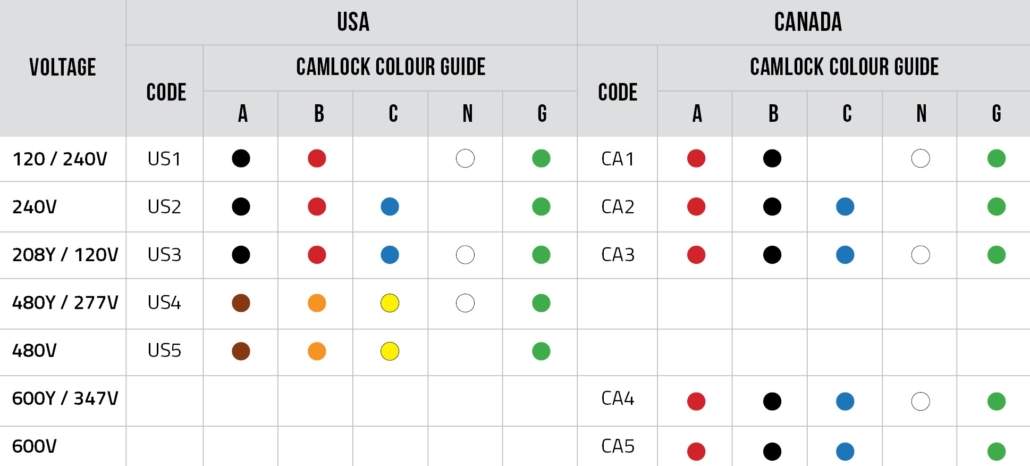

PHASE CONFIGURATION
