Voltage Rating: 5kV & 15kV
Current Rating: 800A & 2000A
Cable Type: 350 KCMIL, 500 KCMIL. CU / MV105 / EPR / FT4

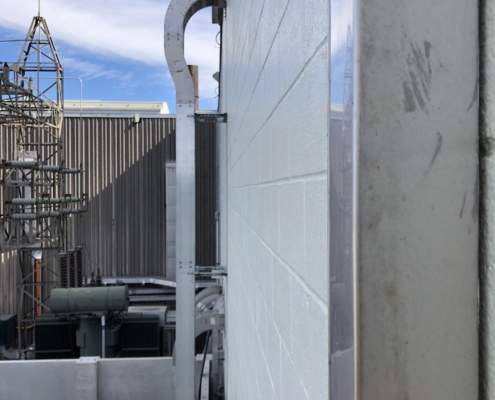

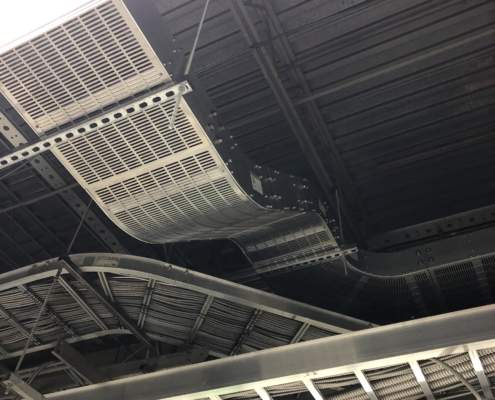

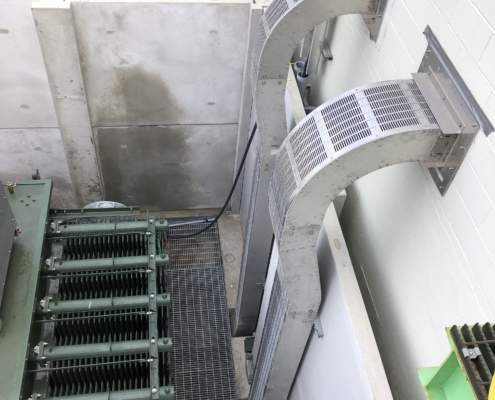

This project showcases a multiple cable bus installation for the commercial industry consisting of medium voltage cable bus runs, 3D field scans, supports, and over 400’ of underground trenches.
This project’s underground system features a single large trench enclosing two cable bus runs splitting off into different directions. The system allows for a large open space between the facility and power source.
